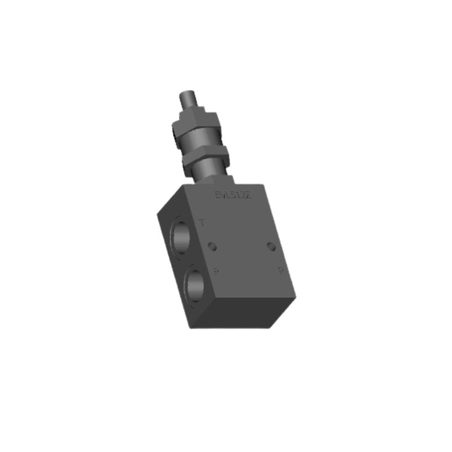

Eurofluid EVL5-12-X3F in-line pressure relief valve, G 1/2"

* Price on request *

Tax included

Eurofluid EVL5-12-X3F direct-acting pressure relief valve, for in-line mounting, G 1/2" ports, with VS-80 relief valve and key adjustment.

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.6291.EVL512X3F

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

In-line body with G 1/2" P and T ports, fitted with a Eurofluid VS-80 direct-acting relief valve. When the pressure reaches the setting, it opens and relieves to T.

12: G 1/2" ports
X: with VS-80 relief valve fitted
3: highest spring range of the series
F: key adjustment
Maximum pressure: 270 bar; maximum flow: 80 l/min
Weight: 1.8 kg

The same series comes with G 3/4" ports (EVL5-34) and with handwheel (V) instead of key.

Source: Eurofluid Hydraulic General Catalogue technical catalogue.
