Marchesini VAU anti-shock valve for Danfoss OMS, OMP and OMT motors

Name: Marchesini VAU anti-shock valve for Danfoss OMS, OMP and OMT motors
Brand: Oleodinamica Marchesini
Availability: InStock

* Price on request *

Price including VAT at the legal rate

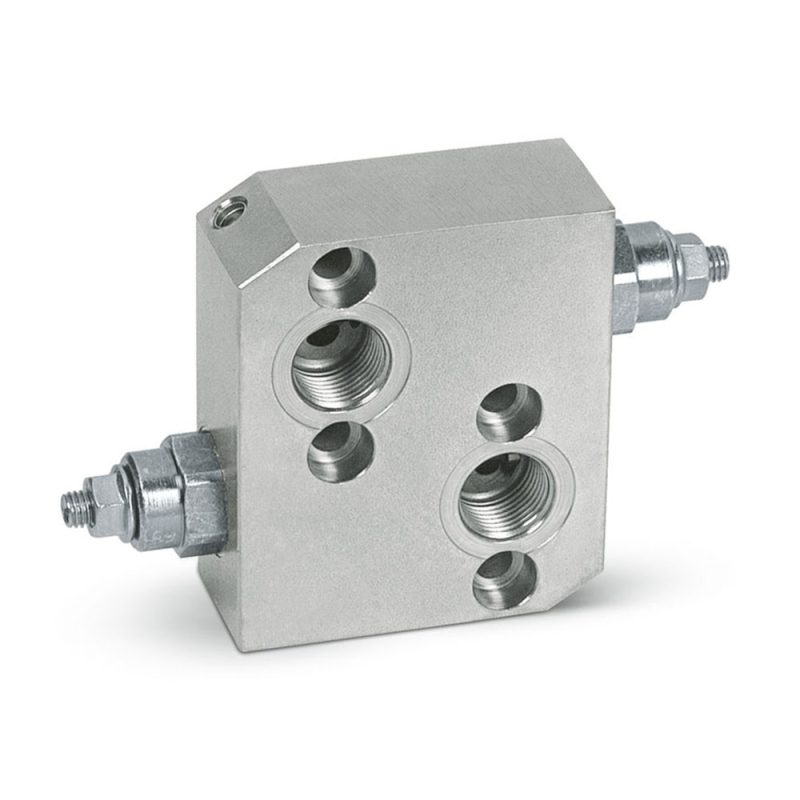

Marchesini VAU anti-shock valve that bolts directly onto Danfoss OMS, OMP/OMR and OMT orbital motors, with two cross-relief valves.

Relief valves: OMS - V0490

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA01.V0490

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Two cross-relief pressure valves in a body that mounts directly on the orbital motor: M1 and M2 face the motor ports and V1 and V2 connect to the supply. They protect both sides of the motor against pressure peaks when braking and reversing, with no pipes between valve and motor.

V0490: for OMS, G 1/2" ports, up to 50 l/min
V0500: for OMP/OMR, G 1/2" ports, up to 60 l/min
V0505: for OMT, G 3/4" ports, up to 100 l/min
/SF versions: with brake release
Springs for 10-50, 20-100, 10-180 (standard), 50-250 and 80-300 bar

Zinc-plated steel body, NBR seals. Check the motor series on the name plate (OMS, OMP, OMR or OMT) to choose the version.

Source: Oleodinamica Marchesini technical catalogue, section 5 Valvole antiurto, 2008.
