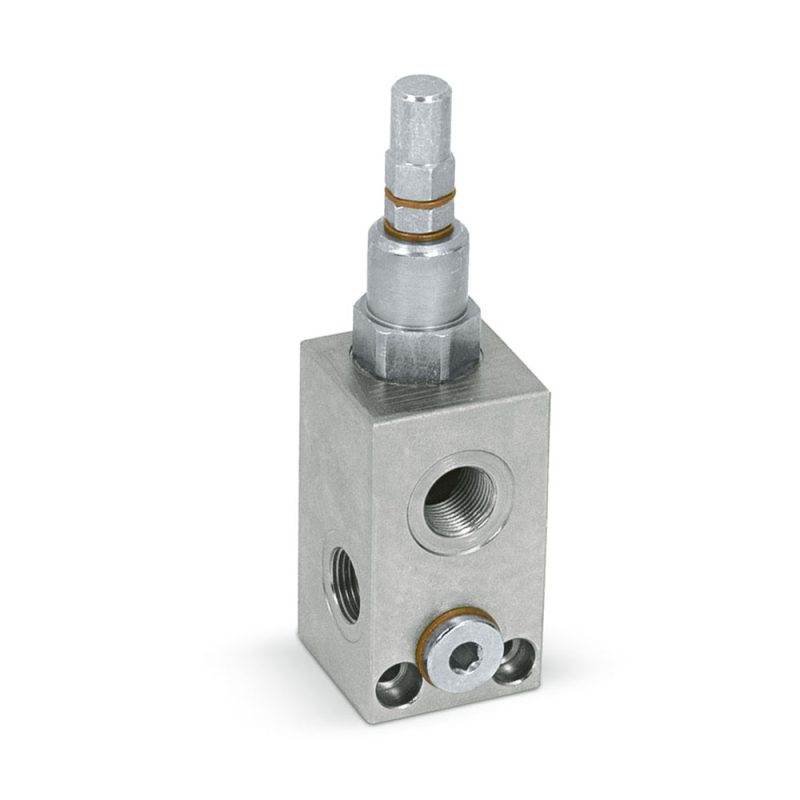

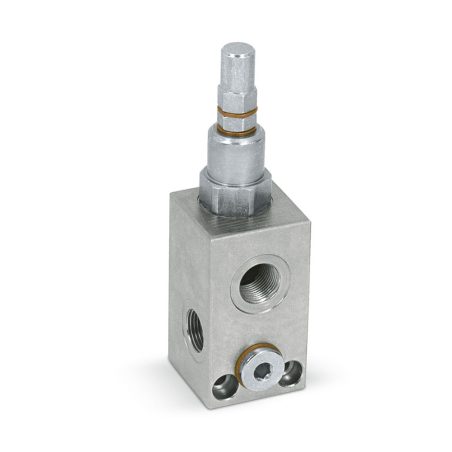

Marchesini VMP in-line pressure relief valve

Name: Marchesini VMP in-line pressure relief valve
Brand: Oleodinamica Marchesini
Availability: InStock

€45.55

Tax included Delivery in 1 to 5 working days.

(37.04 € No tax)

Marchesini VMP in-line pressure relief valve, 3/8", 1/2" and 3/4", up to 120 l/min, with several springs and optional handwheel.

Relief valves: 3/8" - V0700

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA01.V0700

€37.04 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Direct-acting relief valve with guided cone poppet, for in-line mounting. When the pressure reaches the setting, it opens and relieves to T so the pressure goes no higher. P connects to the pressure line and T to the return; port P is reversible. It has a plugged port for fitting a pressure gauge.

V0700: G 3/8", up to 45 l/min
V0710: G 1/2", up to 70 l/min
V0720: G 3/4", up to 120 l/min
Zinc-plated steel body, hardened and ground steel internals, NBR seals

The code suffix gives the spring: no number, 10-180 bar (standard); /50, 10-50 bar; /100, 20-100 bar; /250, 50-250 bar; /300, 80-300 bar. V means handwheel for manual adjustment.

Source: Oleodinamica Marchesini technical catalogue, section 4 Valvole di massima pressione, 2008.
