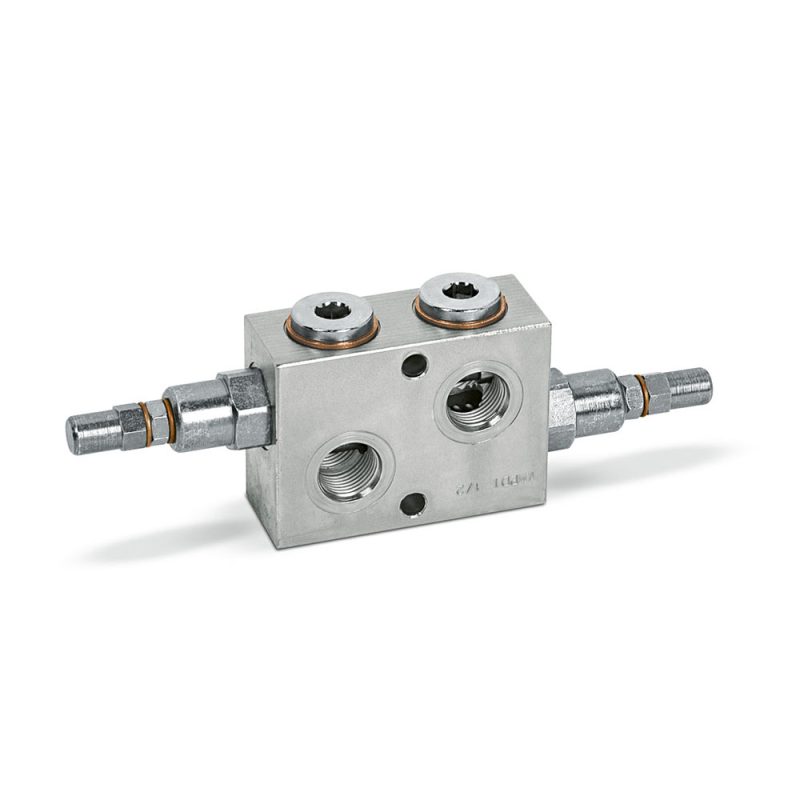

Marchesini VMPDI 1/2" dual cross relief valve

Name: Marchesini VMPDI 1/2" dual cross relief valve
Brand: Oleodinamica Marchesini
Availability: InStock

€87.03

Tax included Delivery in 1 to 5 working days.

(70.76 € No tax)

Marchesini VMPDI 1/2" dual cross relief valve, with six ports, that can protect both sides of two cylinders with a single valve.

Relief valves: 1/2" - V0738

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA01.V0738250

€70.76 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VMPDI has two cross-relief pressure valves and six ports: two inlets and four reversible outlets. It limits the pressure in both lines of an actuator and, thanks to the extra ports, a single valve can serve two cylinders. It also works as an anti-shock valve or to set the two lines at different pressures.

V0738: G 1/2" ports, up to 70 l/min
Springs for 10-50, 20-100, 10-180 (standard), 50-250 and 80-300 bar; /300 means the 80-300 bar spring
Zinc-plated steel body, NBR seals

Marchesini recommends fitting it close to the actuator to reduce pressure losses.

Source: Oleodinamica Marchesini technical catalogue, section 5 Valvole antiurto, 2008.
