AS weld-on union

* Price on request *
Price including VAT at the legal rate

VOSS AS weld-on union, with DIN tube connection.

DIN AS accessory: 10L
Quantity
Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5909.10L

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

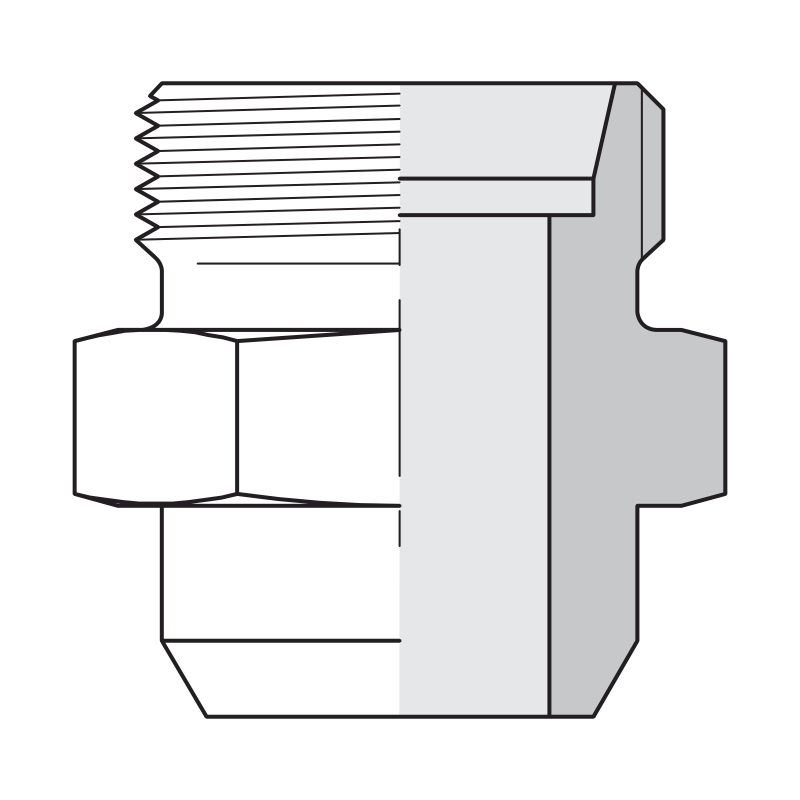

The AS has a weld end on one side and a DIN 2353 body (ISO 8434-1, 24° cone) for a nut and cutting ring on the other. It is welded onto a manifold, tank or frame to create a tube outlet where there is no threaded port.

  • L series from 6 to 42 mm; S series in 12, 16 and 20 mm
  • Nominal pressure in the VOSS datasheet: L series 315 bar up to 18 mm and 160 bar from 22 to 42 mm; S series 630 bar at 12 mm and 400 bar at 16 and 20 mm

Weld the body before fitting the nut and ring. Choose by the tube outside diameter and the series. Sold as the body only: the DIN nut and cutting ring are sold separately and are listed in this item's accessories.

Source: VOSS Hydraulic connection technology technical catalogue, version 7004695700/201812/01.

1.5909.10L

Specific References

Internal barcode
2200001235700

You might also like

Customers who bought this product also bought:

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (13)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
6L
1.5909.6L
In stock
8L
1.5909.8L
In stock
10L
1.5909.10L
On request
12L
1.5909.12L
In stock
12S
1.5909.12S
On request
15L
1.5909.15L
Last units
16S
1.5909.16
Last units
18L
1.5909.18L
Last units
20S
1.5909.20
In stock
22L
1.5909.22L
On request
28L
1.5909.28L
Last units
35L
1.5909.35L
Last units
42L
1.5909.42L
On request
