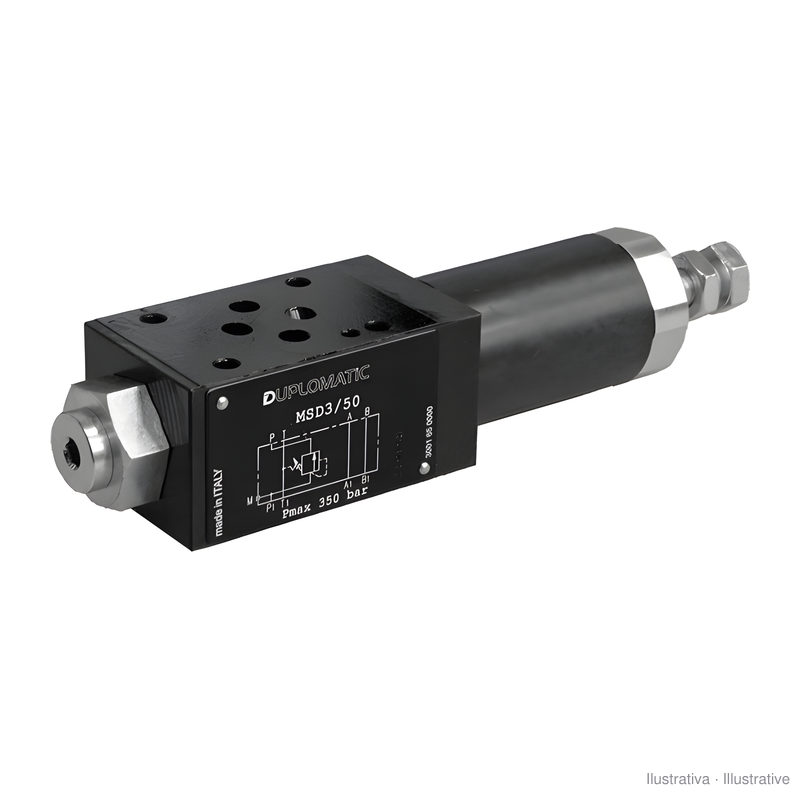

Duplomatic MSD5/50 modular sequence valve NG6 (CETOP 3), 50-280 bar

Name: Duplomatic MSD5/50 modular sequence valve NG6 (CETOP 3), 50-280 bar
Brand: Duplomatic
SKU: D.MSD5/50
Price: 420.32 EUR
Availability: InStock

€420.32

Price including VAT at the legal rate

(341.72 € Excluding VAT. VAT at the legal rate applies.)

Duplomatic MSD5/50 modular sequence valve for NG6 (CETOP 3), adjustable from 50 to 280 bar.

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.MSD5/50

€341.72 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The MSD5/50 is a direct-acting, spool-type sequence valve in an NG6 (CETOP 3) modular plate with the ISO 4401-03 mounting surface. It fits underneath the solenoid valve with no pipework and is used to run two or more actuators in order: at rest it is closed and only opens when the pressure in line P1 reaches the set value. It closes again when the pressure drops below that value.

Adjustment range: 50 to 280 bar (digit 5 in the code)
Maximum pressure 350 bar; on line T, 10 bar maximum
Maximum flow: 50 l/min in the controlled lines and 75 l/min in the free lines
Weight 1.4 kg; sealing to the plate with 4 O-rings 2037 (9.25x1.78)

It is adjusted with the hexagon-head screw (17 mm spanner); turning clockwise increases the pressure. It has a 1/4" BSP pressure gauge port.

Source: Duplomatic MSD technical catalogue, version 63 200/110 ED.
