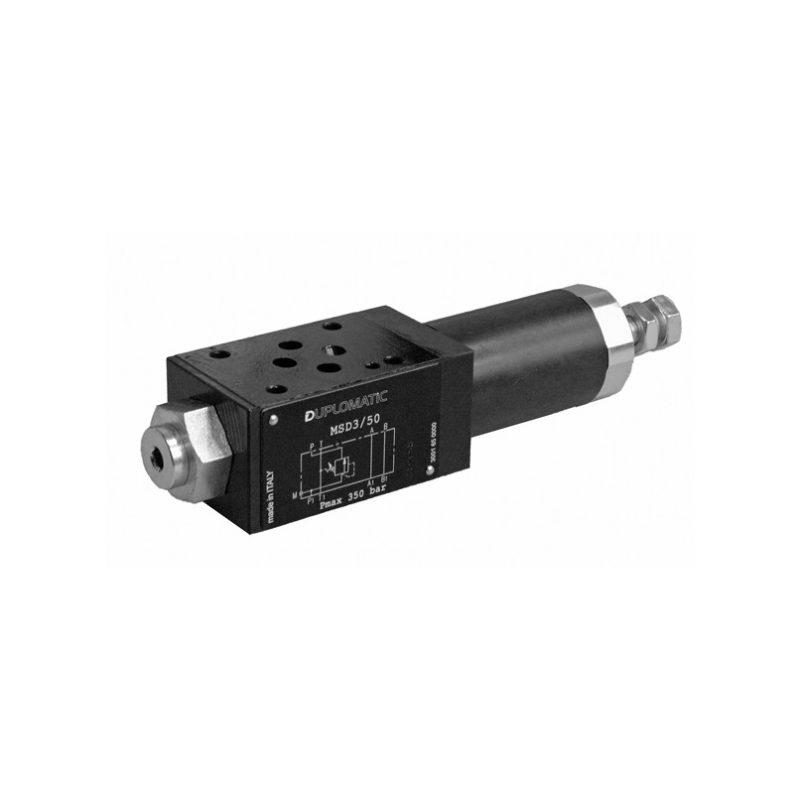

Duplomatic MSD3/50 modular sequence valve NG6 (CETOP 3), 10-70 bar

* Price on request *

Price including VAT at the legal rate

Duplomatic MSD3/50 modular sequence valve for NG6 (CETOP 3), adjustable from 10 to 70 bar.

Quantity

Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.MSD3/50

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Duplomatic direct-acting sequence valve in an NG6 (CETOP 3) modular plate, fitted without pipework underneath an ISO 4401-03 solenoid valve. Until the pressure in line P1 reaches the set value, the passage stays closed; when it does, the valve opens and feeds the next circuit. This is how a second actuator is made to work only after the first.

Adjustment range: 10 to 70 bar (code 3), for low-pressure sequences
Maximum pressure 350 bar; line T up to 10 bar
Up to 50 l/min in the controlled lines and 75 l/min in the free lines
1.4 kg; 4 O-rings 2037 (9.25x1.78) on the mounting face

Adjustment is on the hexagon screw (17 mm spanner), and there is a 1/4" BSP gauge port to set the pressure. For higher ranges there are the MSD4/50 (30-140 bar) and MSD5/50 (50-280 bar).

Source: Duplomatic MSD technical catalogue, version 63 200/110 ED.
