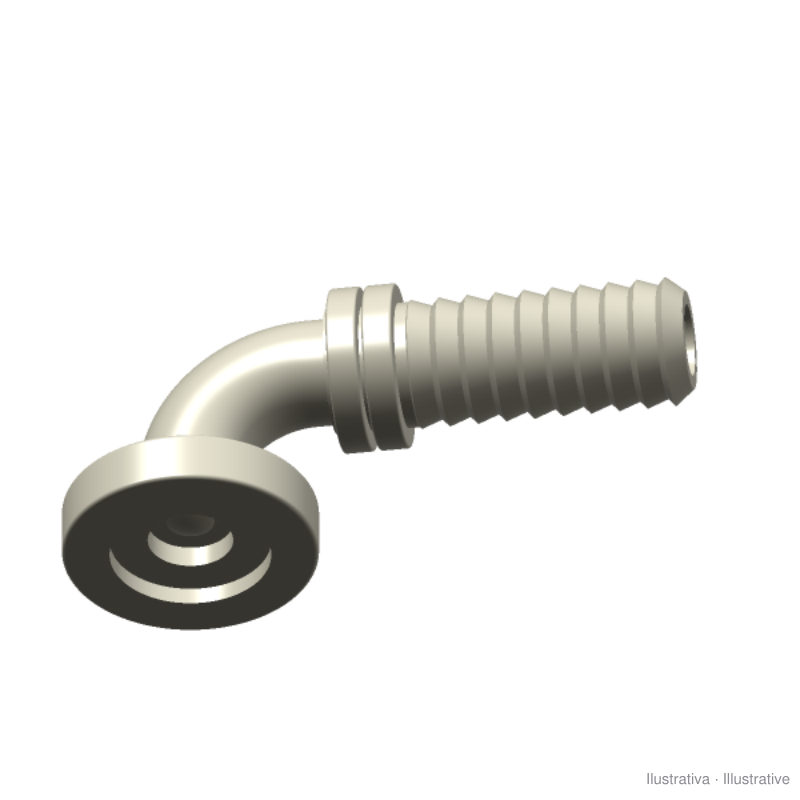

90° SAE 6000 flange 1.1/4" x 1.1/4" Interlock Multispiral-NS

90° SAE 6000 psi (code 62) flange, 1.1/4" x 1.1/4", from the Interlock system for high-pressure multispiral hoses (Multispiral-NS, as the name says). In the Interlock system, the part and the ferrule lock into each other to resist hose pull-out.

The flange head is clamped onto an SAE 6000 port with a split or one-piece flange clamp and four bolts, and seals with the face O-ring (SAE 1.1/4": 37.69x3.53 mm).

Before ordering, check the hose series and the matching Interlock ferrule, and that the port is SAE 6000 (code 62) and not SAE 3000.
