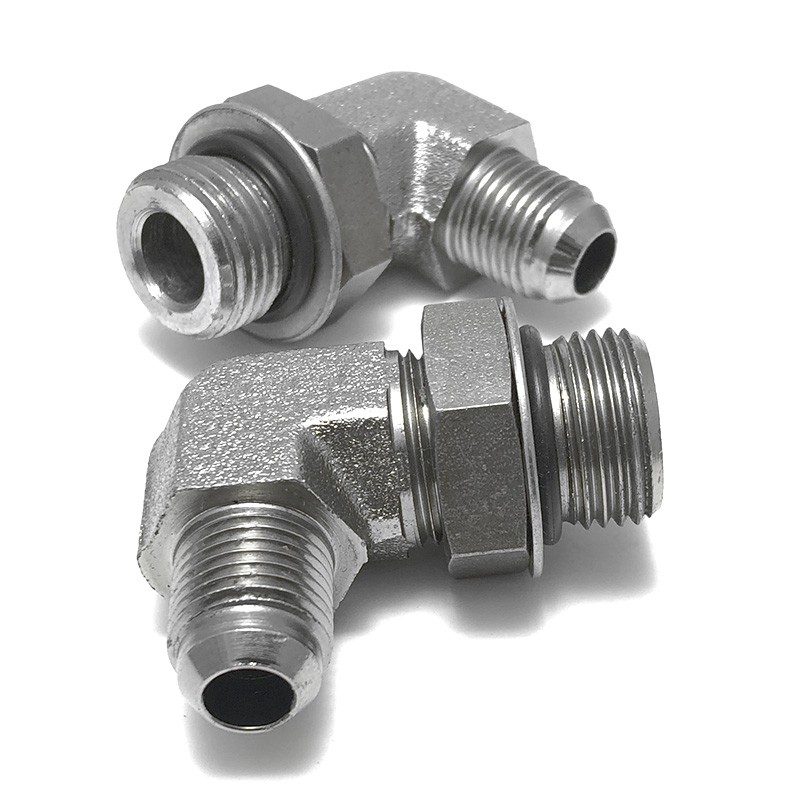

90° male-male JIC-UNF elbow (S575)
search
  • 90° male-male JIC-UNF elbow (S575)

90° male-male JIC-UNF elbow (S575)

€12.46
Tax included Delivery in 1 to 5 working days.

(10.13 € No tax)

90° elbow with a male JIC 37° end and an O-ring male UNF end, for the UNF ports of pumps and valves. S575 series, from 7/16" to 1.5/8".

JIC accessory: 1.1/16" - 1.1/16"
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0622.11161116

€10.13 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

90° elbow, S575 series, with an O-ring male UNF end for UNF ports (ORB type) and a male JIC 37° end for the hose fitting. The UNF side seals with the O-ring in the port chamfer; the JIC side, metal to metal on the 37° cone.

There are 14 combinations, from 7/16" to 1.5/8":

  • With both threads the same: 7/16", 1/2", 9/16", 3/4", 7/8", 1.1/16", 1.5/16" and 1.5/8"
  • With different sizes on each side: 7/16"-9/16", 9/16"-3/4", 3/4"-7/8", 7/8"-3/4", 1.1/16"-7/8" and 1.1/16"-1.5/16"

On the combinations with different sizes, if you are unsure which is the JIC side and which the UNF side, please contact us before ordering.

1.0622.11161116

Specific References

ean13
2200002891202

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (14)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
7/16" - 7/16"
1.0622.716716
In stock
7/16" - 9/16"
1.0622.716916
Last units
1/2" - 1/2"
1.0622.1212
In stock
9/16" - 9/16"
1.0622.916916
Last units
9/16" - 3/4"
1.0622.91634
Last units
3/4" - 3/4"
1.0622.3434
In stock
3/4" - 7/8"
1.0622.3478
On request
7/8" - 3/4"
1.0622.7834
In stock
7/8" - 7/8"
1.0622.7878
In stock
1.1/16" - 7/8"
1.0622.111678
On request
1.1/16" - 1.1/16"
1.0622.11161116
In stock
1.1/16" - 1.5/16"
1.0622.11161516
On request
1.5/16" - 1.5/16"
1.0622.15161516
Last units
1.5/8" - 1.5/8"
1.0622.158158
On request
