WE lubrication elbow (LL series)

Name: WE lubrication elbow (LL series)
Brand: VOSS
Availability: InStock

* Price on request *

Tax included

WE elbow for LL series lubrication pipes, 4 to 10 mm, with BSPT, NPT or metric thread.

Lubrication accessory: 10LL - 1/4" BSPT

Quantity

Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5902.10LLR

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

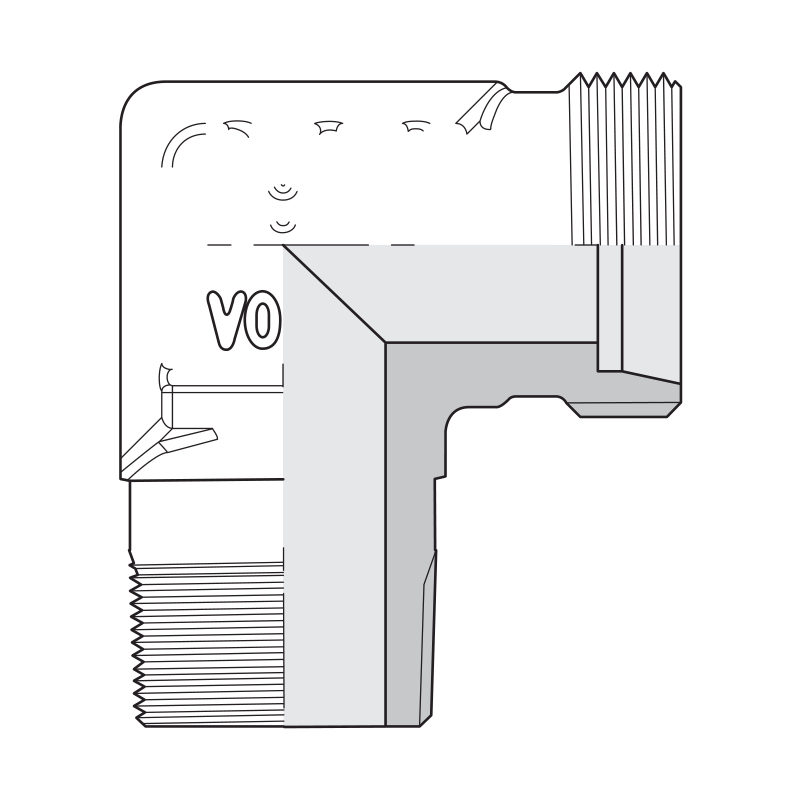

90° male stud elbow (VOSS WE type) for LL series pipe, the extra-light series used on centralised lubrication lines. One end takes the pipe, with an LL series DIN cutting ring and nut; the other screws into the port of the pump, the distributor or the lubrication point.

Available options:

4 mm pipe: 1/8" BSPT
6 mm pipe: M8x1, M10x1, 1/8" BSPT or 1/8" NPT
8 mm pipe: 1/4" BSPT
10 mm pipe: 1/4" BSPT

In the attached VOSS datasheet, the 4 and 6 mm LL elbows have a tapered male thread, which seals on the thread itself, and are rated PN 100. Check the pipe diameter and the port thread: 1/8" BSPT and 1/8" NPT are similar but not interchangeable.

Source: VOSS Male stud elbows datasheet.
