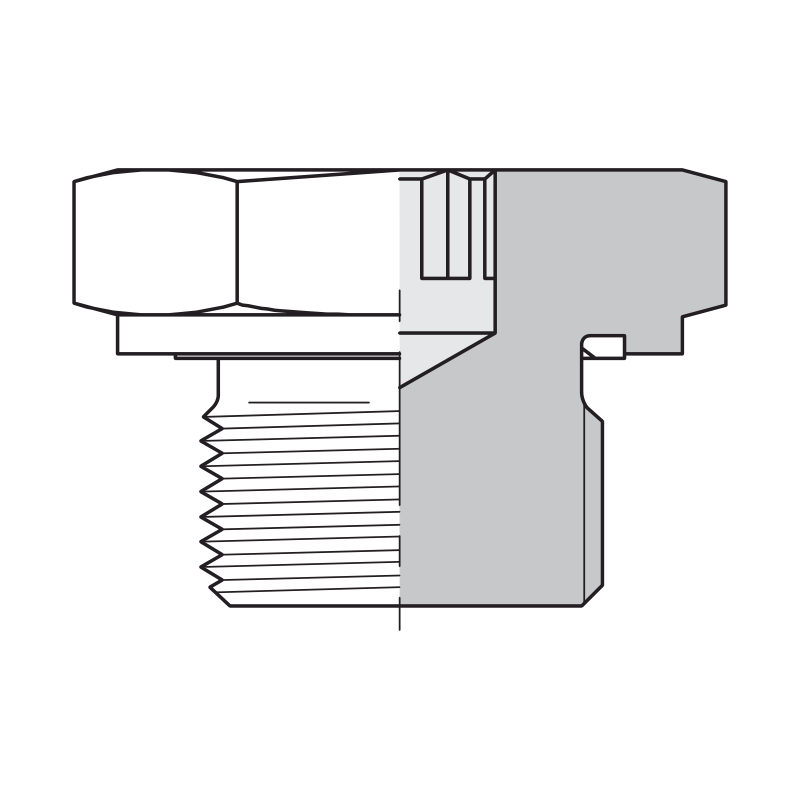

VSTI male metric plug with ED seal

Name: VSTI male metric plug with ED seal
Brand: VOSS
Availability: InStock

€2.07

Tax included Delivery in 1 to 5 working days.

(1.68 € No tax)

VOSS VSTI male metric plug with elastomer ED seal, from M8x1 to M33x2.

DIN VSTI accessory: M10x1.0

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5920.1010

€1.68 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

VOSS VSTI male plug with parallel metric fine thread and an ED seal (NBR profile ring) next to the face, to close metric female ports on manifolds, pumps and valves. It seals against the spot face of the port, with no tape or thread sealant.

Thread: parallel metric fine, ISO 9974-2 form E
Seal: ED profile ring in NBR
Nominal pressure: PN 400 for all sizes listed
Sizes: M8x1, M10x1, M12x1.5, M14x1.5, M16x1.5, M18x1.5, M20x1.5, M22x1.5, M24x1.5, M26x1.5, M27x2 and M33x2

The VOSS datasheet, with tightening torques, is in the attachments. To choose, measure the diameter and pitch of the port thread: some sizes are close but have different pitches (M26x1.5 and M27x2).

Source: VOSS Blanking plugs for ports datasheet.
