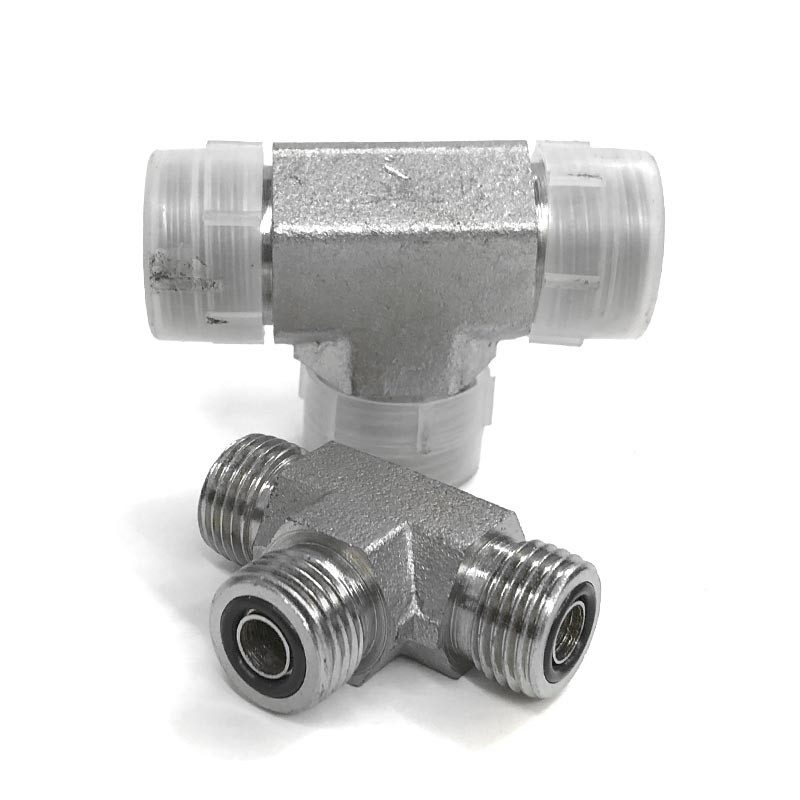

Male-male-male ORFS tee

Name: Male-male-male ORFS tee
Brand: FOR
Availability: InStock

€16.69

Tax included Delivery in 1 to 5 working days.

(13.57 € No tax)

Male-male-male ORFS tee (O-ring face seal), with UNF thread from 11/16" to 1.7/16".

ORFS accessory: 1"

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0948.T1

€13.57 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Tee with three male ORFS ends, to split an ORFS line into two or join two branches into one. On ORFS the seal is made on the flat face of the male end, with an O-ring sitting in a groove, against the face of the female fitting. The system is widely used on construction and agricultural machinery.

The size of each option is the UNF thread size: 11/16", 13/16", 1", 1.3/16" and 1.7/16".

To choose, measure the outside diameter of the thread on the nut that will tighten onto the tee and check that the connection is flat-face (ORFS) and not 37° JIC cone, which uses similar threads. When fitting, check that the O-ring on each face is undamaged and in place.
