DNP PLT4 high-pressure flat face male quick coupling

Name: DNP PLT4 high-pressure flat face male quick coupling
Brand: D.N.P. Industriale Srl
Availability: InStock

€26.72

Tax included Delivery in 1 to 5 working days.

(21.72 € No tax)

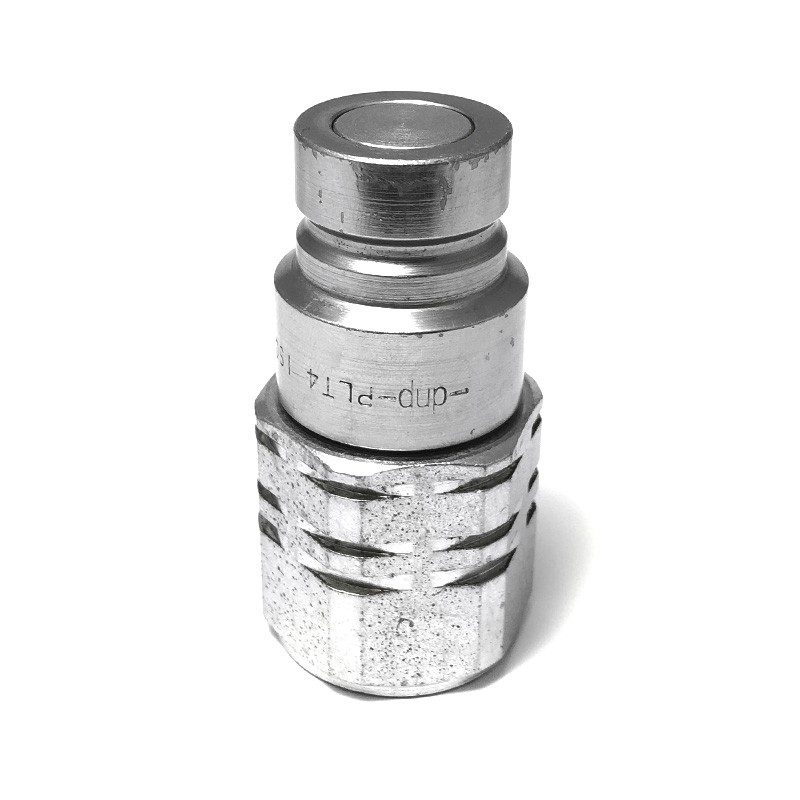

DNP PLT4 flat face male quick coupling, ISO 16028, for 350 to 500 bar. Size DN22 with BSP 3/4" female thread.

Quick coupling: 7/8" (3/4") - PLT4.2219.113

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.4505.7834

€21.72 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

DNP PLT4 series flat face male quick coupling, the high-pressure version of ISO 16028, for 350 to 500 bar working pressure. It connects to the PLT4 female with the same body without losing oil or letting air in.

Steel with zinc-iron and zinc-nickel plating; NBR and PU seals
Working temperature from -25 °C to +100 °C
Cannot be connected with residual pressure

The option available is PLT4.2219.113: DN22 body (ISO 16) with BSP 3/4" female thread. Flat face equivalents usually quoted from other makes are Parker FE, Faster 2FFI, Tomco FE, Aeroquip FD89, Perfecting HT, Snap-Tite 74 and Stucchi A and FIRG; check that the size is the same DN22.

Source: DNP hydraulic quick release couplings technical catalogue, 2023.
