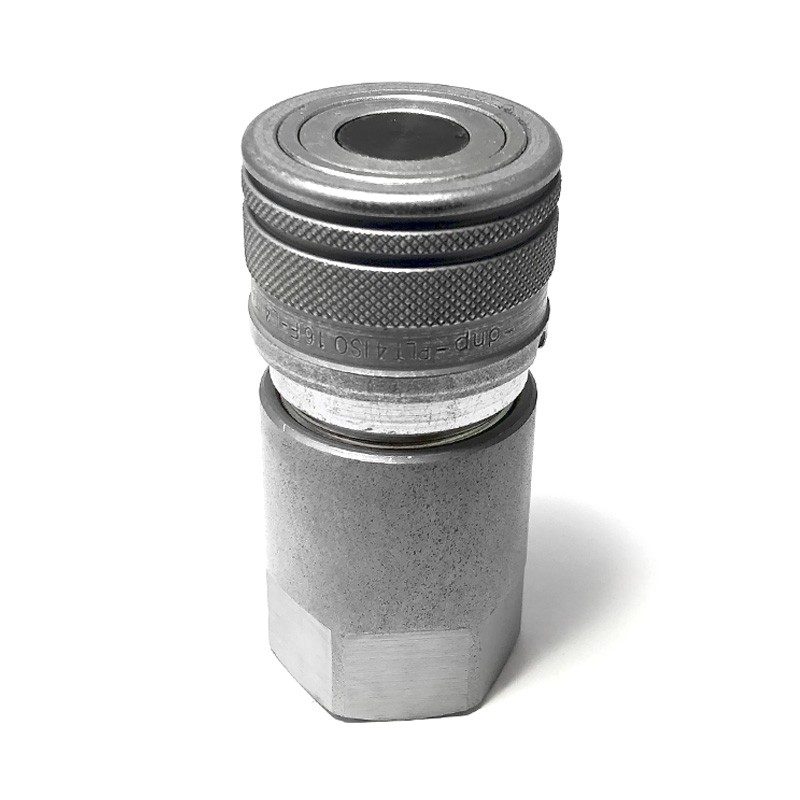

DNP PLT4 high-pressure flat face female quick coupling
€58.26
Price including VAT at the legal rate
Delivery in 1 to 5 working days.
(47.36 € Excluding VAT. VAT at the legal rate applies.)
DNP PLT4 flat face female quick coupling, ISO 16028, for 350 to 500 bar. Size DN22 with BSP 3/4" female thread.
DNP PLT4 series flat face female quick coupling, the reinforced ISO 16028 version for working pressures from 350 to 500 bar, used in high-pressure circuits on construction machines. It has ball locking and, like all flat face couplings, loses almost no oil when disconnected.
- Steel with zinc-iron and zinc-nickel plating; NBR and PU seals
- Working temperature from -25 °C to +100 °C
- Cannot be connected with residual pressure
The option available is PLT4.2219.112: DN22 body (ISO 16) with BSP 3/4" female thread. It connects to the PLT4 male with the same body (PLT4.2219.113). DN22 is a size of its own, between DN20 and DN25, so check the body of the male before ordering.
Source: DNP hydraulic quick release couplings technical catalogue, 2023.
