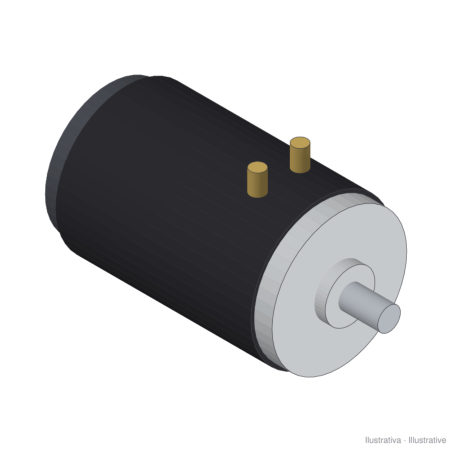

Hydronit DC electric motor

Direct current motors for Hydronit mini power packs, 12 or 24 V, nearly all with thermal protection.

• Ø80: 500 and 800 W, permanent magnets, IP54, insulation class F
• Ø112/114: 1,600 W at 12 V and 2,200 W at 24 V, IP54
• Ø151: 2,500 W at 12 V and 3,000 W at 24 V, heavy duty, with fan, IP20

These are motors for intermittent duty: each has its own cycle (for example, the 800 W 12 V one works 3 minutes at a time, or 10% of the time). The starting relay and the mounting kit are sold separately.
