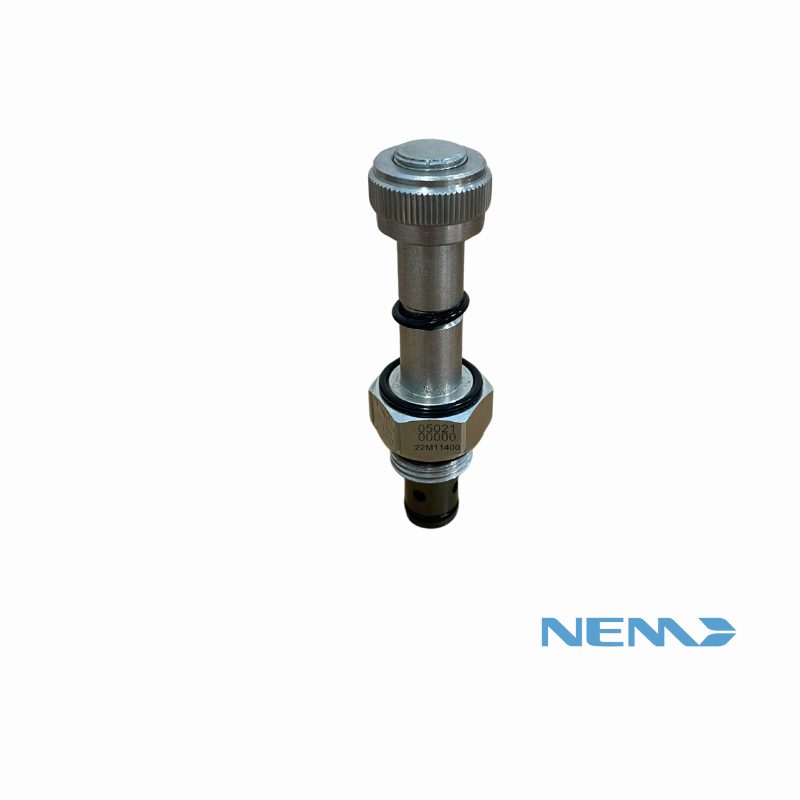

NEM direct-acting 2/2 poppet solenoid valve (cartridge)

Name: NEM direct-acting 2/2 poppet solenoid valve (cartridge)
Brand: NEM Hydraulics
Availability: InStock

€116.48

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(94.7 € Excluding VAT. VAT at the legal rate applies.)

NEM 2/2 poppet solenoid cartridge valve, direct acting and normally closed, in SAE 08 (20 l/min, 250 bar) or SAE 10 (30 l/min, 350 bar).

Model: 2/2 valve direct-acting NC 20 l/min 250 bar CAV08-2 [0502100000]

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.1339.0502100000

€94.70 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

NEM 2-way, 2-position solenoid valve, poppet type and direct acting, normally closed: with no current it closes the passage with minimal leakage (0.25 cm³/min); with the coil energised, it opens. It is used in hydraulic blocks to hold an actuator, unload a line or switch a circuit on and off.

0502100000 (CT-502): SAE 08 cartridge, cavity 8-2, up to 20 l/min and 250 bar, coil 09400;
0503100100 (CT-503): SAE 10 cartridge, cavity 10-2, up to 30 l/min and 350 bar, coil 09800.

The coil is ordered separately. Check the cavity of the block and the coil voltage before ordering.

Source: NEM Mechanical and Electrical Cartridge Valves technical catalogue, DT001GB001 IR00, 14.11.
