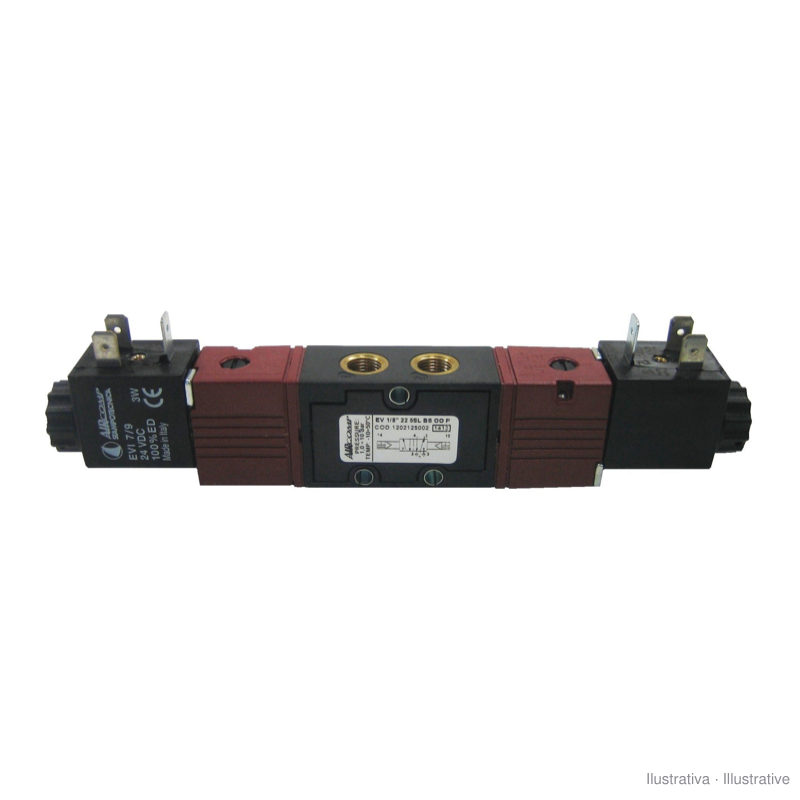

Aircomp 1202126001 5/3 closed centre G1/8 solenoid valve, line 120
search
  • Aircomp 1202126001 5/3 closed centre G1/8 solenoid valve, line 120

Aircomp 1202126001 5/3 closed centre G1/8 solenoid valve, line 120

€57.86
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(47.04 € Excluding VAT. VAT at the legal rate applies.)

Aircomp line 120 5/3 closed centre pneumatic solenoid valve, with G1/8 ports and spring centring. End-of-stock item.

Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1202126001

€47.04 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

5-way, 3-position solenoid valve, with a solenoid on each side and closed centre position (EV 1/8" 22 6 SL RC CC P in the Aircomp catalogue). With both coils de-energised, the springs bring the spool to the centre and all ports are closed: the cylinder stops and is held mid-stroke.

  • Ports: G1/8
  • Working pressure: 2 to 10 bar
  • 22 mm coils, sold separately: 12 V DC, 24 V AC, 110 V AC or 220 V AC
  • Weight: 0.116 kg

With compressed air, mid-stroke holding is not leak-tight: there is always some leakage over time.

Source: Aircomp Valves technical catalogue.

1202126001

Specific References

MPN
1202126001
