Swivel push-in elbow, tapered male, stainless steel (Aignep 60110)

Stainless steel swivel push-in male elbow, taper thread (Aignep 60110)

Name: Stainless steel swivel push-in male elbow, taper thread (Aignep 60110)
Availability: InStock

€27.61

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(22.45 € Excluding VAT. VAT at the legal rate applies.)

Swivel push-in elbow in AISI 316 L stainless steel, male taper thread, Aignep 60000 series. Available R1/4 for Ø10 mm tube. End-of-stock item.

Thread: To be confirmed

Tube: To be confirmed

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 60110 (medida desconhecida)

€22.45 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Description
Product Details

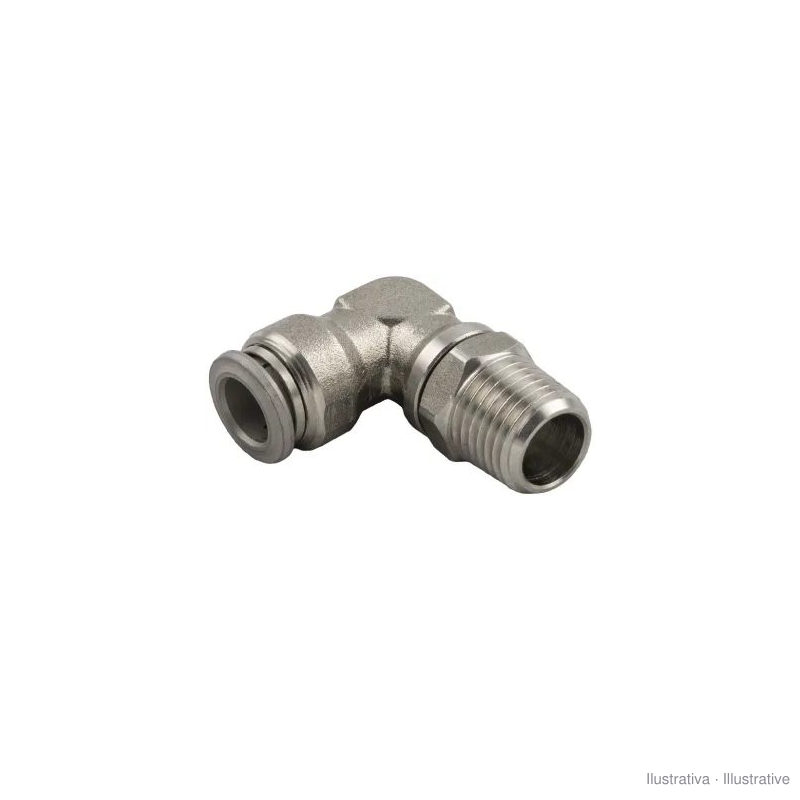

90° elbow from the Aignep 60000 stainless steel series (code 60110), for installations where brass is not suitable: wet or aggressive environments, food and chemical industry. It has a male taper thread on one side and a push-in socket on the other, and the body swivels after tightening.

AISI 316 L stainless steel body, release ring and collet, FKM seals
Pressure -0.99 to 20 bar
Temperature -20 to 225 °C
Compressed air, vacuum and chemical or food industry fluids compatible with these materials

The identified option is R1/4 for Ø10 mm tube (60110 10-1/4). Check the port thread and the outside diameter of the tube before ordering.

Source: Aignep technical catalogue, Catálogo Tarifa 2016.

Reference 60110 (medida desconhecida)
