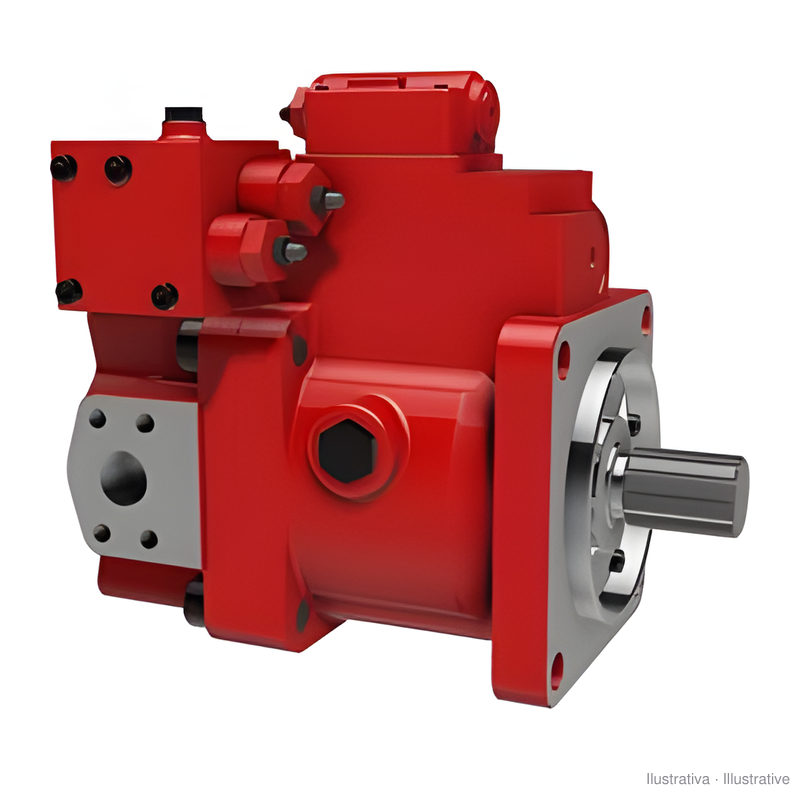

Kawasaki K3VL regulators, controls and torque limiters
search
  • Kawasaki K3VL regulators, controls and torque limiters

Kawasaki K3VL regulators, controls and torque limiters

* Price on request *
Tax included

Regulators, control parts and restrictors for Kawasaki K3VL and K3VLS pumps, with rotating group parts for the K3VLS105.

Part: Gear pump assembly ZX10LPRZ2-07D (2902440-1865D) (501406)
Quantity
Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. KW.501406

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Control parts with Kawasaki codes for K3VL and K3VLS axial piston pumps, and parts for the K3VLS105.

  • K3VLS KR3CS-L0A (with LS bleed) and KR3CS-L1A (blocked LS bleed) regulators
  • Regulator seal kits (standard, Viton and for KR7), torque limiter seal kit and K3VL torque limiter cover kit
  • R1 (0.6 mm hole), R2 (0.9 mm) and R4 (0.4 mm or plugged) restrictors, K3VL restrictor kit, NPTF 1/16 and MH plugs
  • P3 plug to convert the K8V to proportional hydraulic control
  • For K3VLS105: swash plate assembly, RH and LH valve plates, rotary kit without valve plate, NBR seal kit and SAE A, B, BB and C through-drive kits
  • Auxiliary gear pump

The regulator type and restrictors depend on the pump version: check the full code on the nameplate and the code of the fitted regulator.

KW.501406

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (25)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
Gear pump assembly ZX10LPRZ2-07D (2902440-1865D) (501406)
KW.501406
On request
General regulator seal kit (501898)
KW.501898
On request
General regulator seal kit Viton (502064)
KW.502064
On request
HO P3 plug for K8V - conversion to proportional hydraulic control (K8VP3)
KW.K8VP3
Last units
€176.03
K3VL restrictor kit - K700101
KW.K700101
On request
K3VL torque limiter cover kit (2938-0) (29380)
KW.29380
On request
KR7 general regulator seal kit Viton (503082)
KW.503082
Last units
€163.51
MH PLUG K3V/K3VL (0MHM7)
KW.0MHM7
In stock
€4.41
NPTF 1/16 plug K3VL - PBP116-2403
KW.PBP116-2403
In stock
€1.33
R1 drilled d0.6 mm - PTRS13206
KW.PTRS13206
In stock
€10.76
R2 drilled d0.9 mm - PTRS13209
KW.PTRS13209
In stock
€10.76
R4 drilled d0.4 mm - L1 - PTRS13204
KW.PTRS13204
In stock
€13.70
R4 plugged - L0 - PBP132
KW.PBP132
In stock
€3.67
Regulator K3VLS KR3CS-L0A (with LS bleed) (293CS0L0A)
KW.293CS0L0A
Last units
€505.85
Regulator K3VLS KR3CS-L1A (blocked LS bleed) (293CS0L1A)
KW.293CS0L1A
Last units
€505.85
Rotary kit K3VLS105 (without valve plate) - K700551
KW.K700551
Last units
€952.20
SEAL KIT NBR K3VLS105 - K700536
KW.K700536
Last units
€64.61
Torque limiter seal kit K3VL - 2038-HY
KW.2038-HY
In stock
€7.38
Swash plate assembly K3VLS105 R, CW (29150623-1143)
KW.29150623-1143
Last units
€199.49
Through drive kit K3VLS105 - SAE A - 29ST0A
KW.29ST0A
On request
Through drive kit K3VLS105 - SAE B - 29ST0B
KW.29ST0B
In stock
€373.18
Through drive kit K3VLS105 - SAE BB - 29ST02
KW.29ST02
Last units
€307.68
Through drive kit K3VLS105 - SAE C - 29ST0C
KW.29ST0C
Last units
€333.07
Valve plate LH K3VLS105 - 2924710-1649
KW.2924710-1649
Last units
€196.14
Valve plate RH K3VLS105 - 2924710-1613
KW.2924710-1613
Last units
€157.24
