B&C 35VQ vane pump (Vickers 35VQ)

* Preço sob consulta *
Price including VAT at the legal rate

B&C BQ04 fixed vane pump, interchangeable with the Vickers 35VQ, with cartridges from 81.6 to 121.6 cc/rev and up to 210 bar.

B&C pump: 35VQ25C11 (BQ04G25C11)
Quantity
Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5240.35VQ25C11

Request a commercial proposal

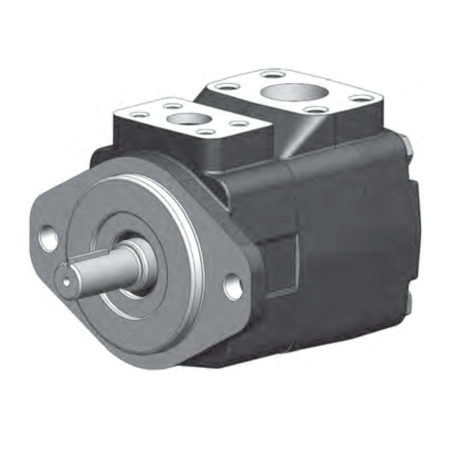

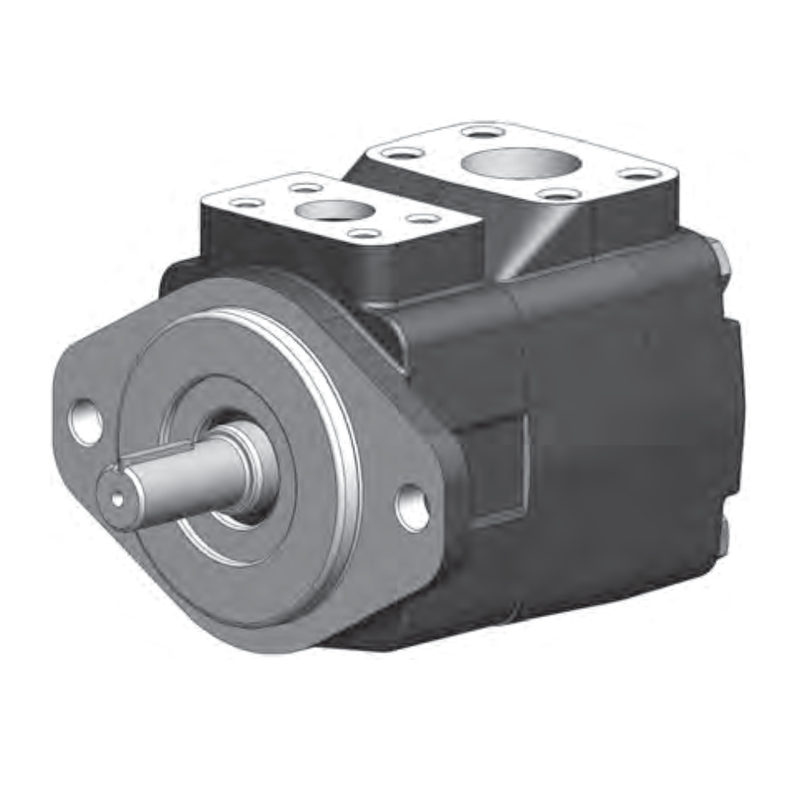

B&C fixed displacement vane pump from the BQ04 series, which fits in place of a Vickers 35VQ. It is a mobile-type pump, with flexible side plates that cope well with pressure peaks, and the wear parts are in a replaceable cartridge.

  • Cartridge 25: 81.6 cc/rev, 94 l/min at 1200 rpm
  • Cartridge 30: 97.7 cc/rev, 113.8 l/min at 1200 rpm
  • Cartridge 38: 121.6 cc/rev, 139.9 l/min at 1200 rpm
  • Maximum pressure with mineral oil: 210 bar; speed from 600 to 2500 rpm (2400 rpm for cartridge 38)
  • Outlet A (opposite inlet) or C (in line with inlet); shaft 01 keyed or 11 splined

The Vickers and B&C codes of each option are shown side by side. On the old pump, the number after 35VQ is the cartridge; also check the outlet position letter and the shaft type.

Source: B&C BQ Series technical catalogue, CT BQ rev3E; B&C BQ series technical catalogue, 2008.

1.5240.35VQ25C11

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (5)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
35VQ25C01 (BQ04G25C01)
1.5240.35VQ25C01
Last units
€1,468.65
35VQ25C11 (BQ04G25C11)
1.5240.35VQ25C11
On request
35VQ30A11 (BQ04G30A11)
1.5240.35VQ30A11
On request
35VQ30C01 (BQ04G30C01)
1.5240.35VQ30C01
On request
35VQ38A01A (BQ04G38A01)
1.5240.35VQ38A01A
On request
