Duplomatic CHM5-SA NG10 (CETOP 5) modular pilot-operated check valve, line A

Name: Duplomatic CHM5-SA NG10 (CETOP 5) modular pilot-operated check valve, line A
Brand: Duplomatic
Availability: InStock

€300.51

Tax included Delivery in 1 to 5 working days.

(244.32 € No tax)

Duplomatic CHM5-SA pilot-operated check valve, modular NG10 (CETOP 5), holding the actuator on line A only, up to 320 bar and 120 l/min.

Duplomatic DS5: CHM5-SA/10

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.CHM5SA

€244.32 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

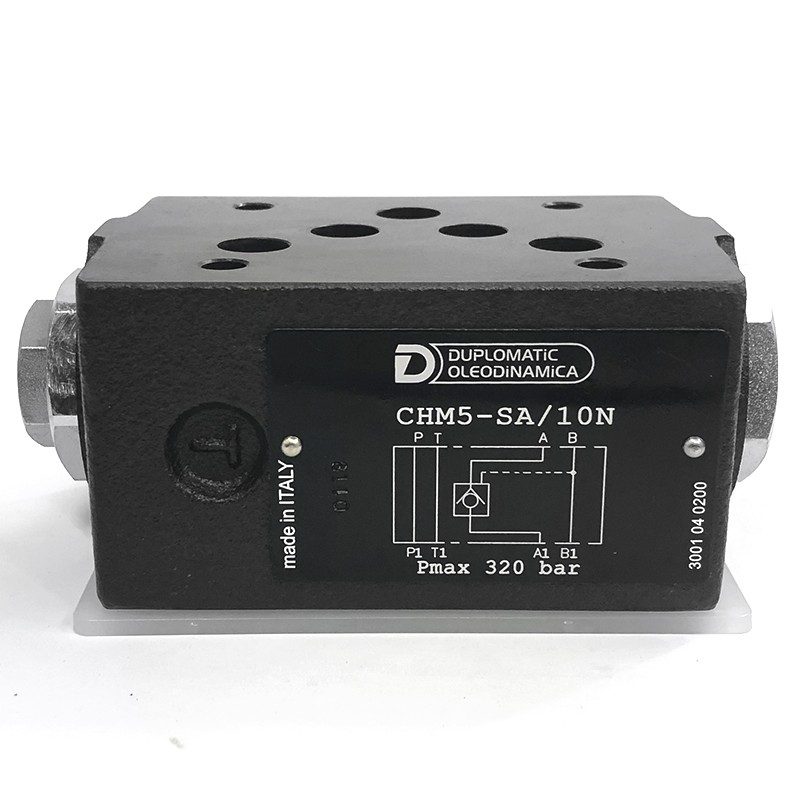

Modular pilot-operated check valve to fit under the NG10 (CETOP 5, ISO 4401-05) solenoid valve. In the SA version the check valve is on line A only: oil cannot leave side A of the cylinder until there is pressure on line B, which pilots the check valve open. Line B flows freely.

Maximum pressure: 320 bar
Maximum flow: 120 l/min
Pilot ratio: 2.3:1; decompression ratio: 14.9:1
Check valve cracking pressure: 2 bar
Weight: 1.9 kg

It is used when the load pulls in one direction only, for example on a vertical cylinder. Check on the circuit diagram which line carries the load.

Source: Duplomatic CHM5 technical catalogue, version 65 360/110 ED.
