Marchesini VU MM male-male check valve
search
  • Marchesini VU MM male-male check valve

Marchesini VU MM male-male check valve

* Price on request *
Tax included

Marchesini VU MM in-line check valve, male-male, 1/4" to 2", with a 1, 3 or 6 bar spring.

Check valves: 1/4" - V0594/1
Quantity
Sold out - Contact us at info@hidraulica.pt

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA04.V0594/1

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

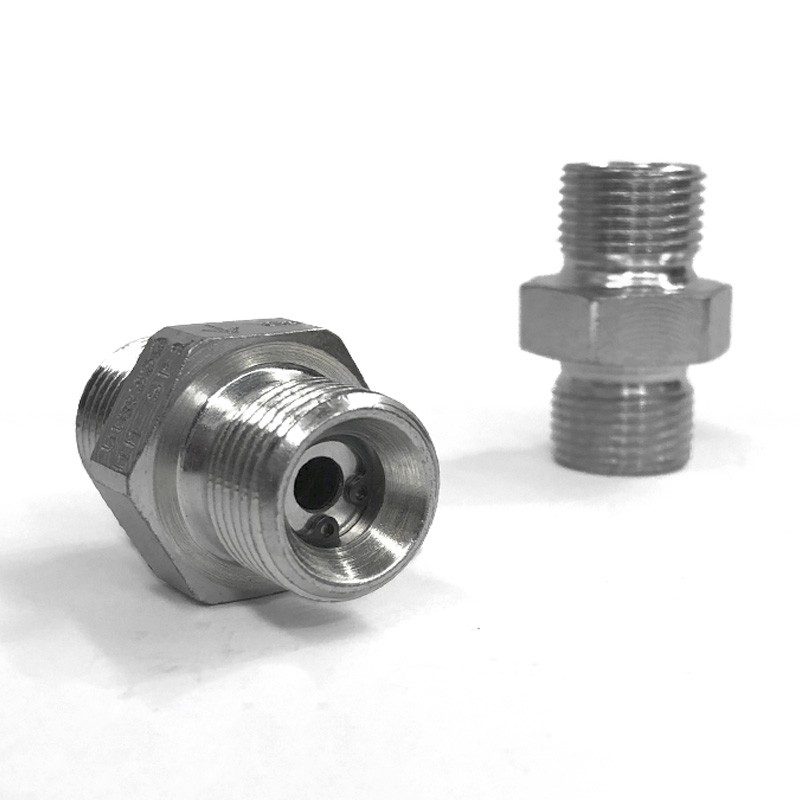

The VU MM is Marchesini's in-line check valve with G male threads on both ends, to fit straight into a female port without an adapter. It lets oil through in one direction and blocks the opposite one.

The number after the slash is the cracking pressure: /1 opens at 1 bar (the standard spring), /3 at 3 bar and /6 at 6 bar.

  • 1/4" (V0594): 8 l/min, 350 bar
  • 3/8" (V0604): 20 l/min, 350 bar
  • 1/2" (V0614): 50 l/min, 350 bar
  • 3/4" (V0624): 90 l/min, 350 bar
  • 1" (V0634): 150 l/min, 320 bar
  • 1 1/4" (V0637): 240 l/min, 320 bar
  • 1 1/2" (V0638): 300 l/min, 320 bar
  • 2" (V0639): 650 l/min, 320 bar

Check the thread and the flow direction before fitting.

Source: Oleodinamica Marchesini general catalogue 2018.

1.MA04.V0594/1

Data sheet

Port thread
G 1
G 1 1/2
G 1 1/4
G 1/2
G 1/4
G 2
G 3/4
G 3/8

Specific References

ean13
2200111606124
