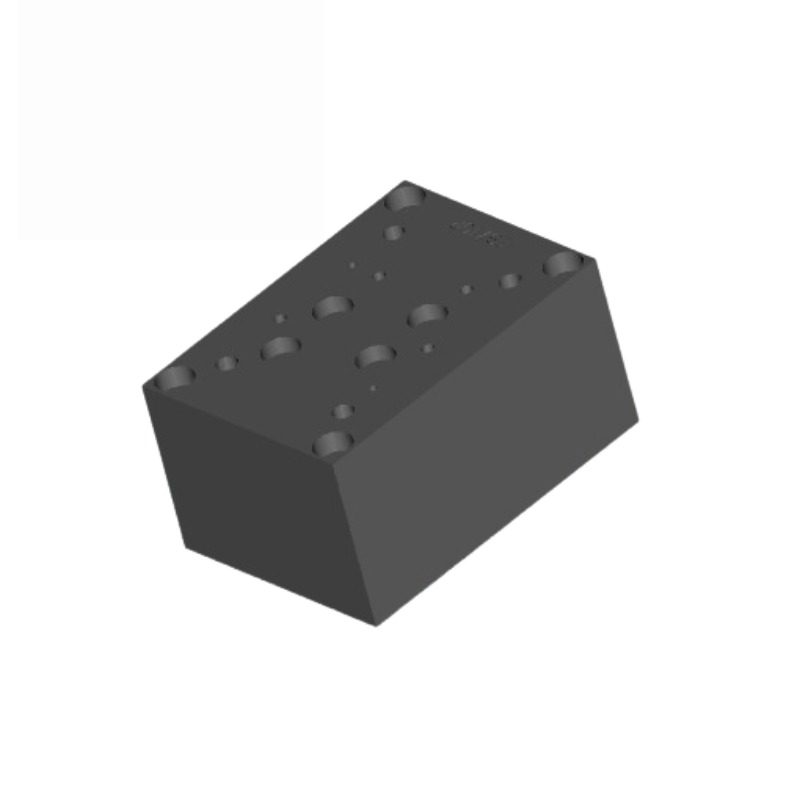

Eurofluid NG16 subplate 1"
€221.13
Price including VAT at the legal rate
Delivery in 1 to 5 working days.
(179.78 € Excluding VAT. VAT at the legal rate applies.)
Eurofluid subplates for NG16 (CETOP 7) valves with 1" G ports: single, with side (ES710LL) or rear (ES710P) ports, and a two-station block (EM207/2Y).
Subplates for NG16 (CETOP 7) valves, all with the main ports in 1" G and with X and Y for pilot and drain. Choose the version in the options:
- ES710LL: single subplate with A, B, P and T on the side; X, Y and gauge port in 1/4" G; 10 kg
- ES710P: single subplate with A, B, P and T at the rear, also with X, Y and M in 1/4" G; 10 kg
- EM207/2Y: parallel block for two NG16 valves, with A and B in 1" G on the side, P in 1" G and T in 1.1/4" G, without relief valve; 35 kg
The datasheet for each code is in the attachments. Before ordering, check which side the pipes come out on the machine and whether you need one or two stations.
Source: Eurofluid Hydraulic general catalogue.
1.6295.16P
Data sheet
- CETOP interface
- NG16 (CETOP 7)
2 other products in the same category:
Are you an OEM? Reseller? Workshop?
All options for this item (3)
Description
Part number
Availability
Price
1" side ports (EM207/2Y)
1.6295.16L
On request
1" side ports (ES710LL)
1.6295.16LL
On request
1" rear (ES710P)
1.6295.16P
Last units
No option matches the filters.
Eurofluid subplates for NG16 (CETOP 7) valves with 1" G ports: single, with side (ES710LL) or rear (ES710P) ports, and a two-station block (EM207/2Y).
