Badestnost Z50ES electric-manual directional valve

€250.95
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(204.02 € Excluding VAT. VAT at the legal rate applies.)

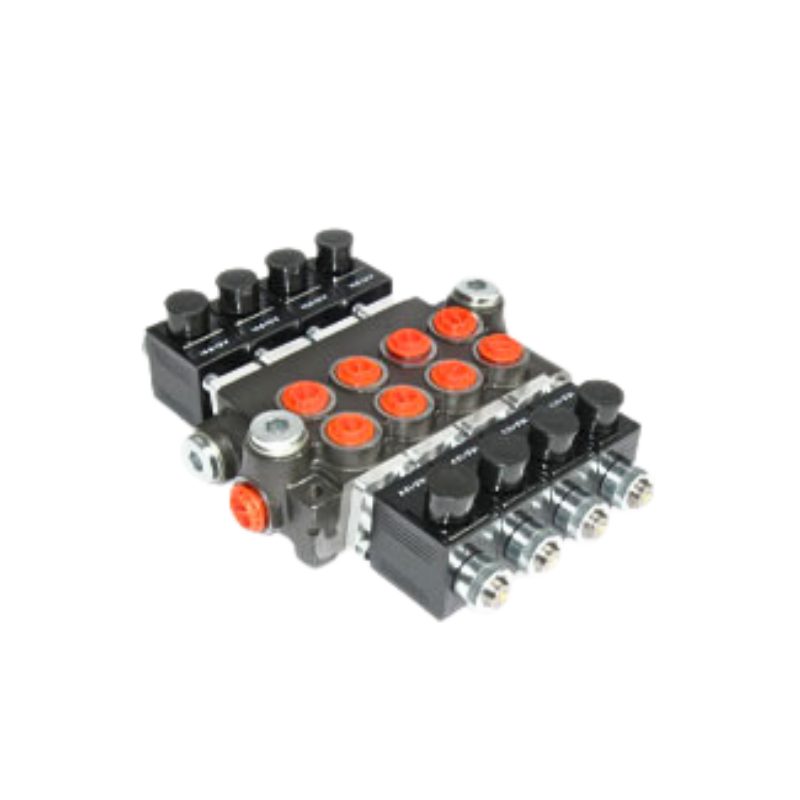

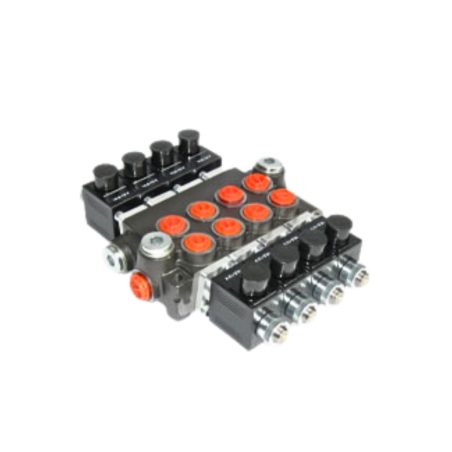

Badestnost Z50ES electrically operated monoblock directional valve, 1 to 6 double-acting sections, with 12 or 24 V DC coils.

Type: 1x 12VDC
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.2346.Z5012V

€204.02 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Hydraulic monoblock directional valve from the Badestnost Z50 series, with direct solenoid control: each spool is moved by coils and returns to neutral by a spring. It allows remote control, by push buttons or switches, of the cylinders on agricultural, forestry and construction machines.

  • Double-acting 3-position spools, with A and B closed in neutral
  • Maximum pressure: 250 bar
  • 12 V DC or 24 V DC coils, with ISO 4400 connector
  • Threads: P and T G1/2; A and B G3/8

Choose the number of sections (1 to 6) and the coil voltage in the options; the voltage must match the machine supply. A newer version, the Z50A1ESD, has an interchangeable body.

Source: Badestnost Z50 data sheet, March 2018; Badestnost Z50A1ESD data sheet, March 2014.

1.2346.Z5012V

Data sheet

Pressure
250 bar
Flow
50 L/min

Specific References

Internal barcode
2200111745243

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (13)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
1x 12VDC
1.2346.Z5012V
In stock
1x 24VDC
1.2346.Z5024V
In stock
2x 12VDC
1.2346.2Z5012V
Last units
2x 24VDC
1.2346.2Z5024V
In stock
3x 12VDC
1.2346.3Z5012V
Last units
3x 24VDC
1.2346.3Z5024V
In stock
4x 12VDC
1.2346.4Z5012V
Last units
4x 24VDC
1.2346.4Z5024V
In stock
5x 12VDC
1.2346.5Z5012V
Last units
5x 24VDC
1.2346.5Z5024V
In stock
6x 12VDC
1.2346.6Z5012V
Last units
6x 24VDC
1.2346.6Z5024V
In stock
7x 24VDC
1.2346.7Z5024V
Last units
