NEM CT-063 proportional relief valve (cartridge)

Name: NEM CT-063 proportional relief valve (cartridge)
Brand: NEM Hydraulics
Availability: InStock

* Price on request *

Price including VAT at the legal rate

NEM CT-063 proportional pressure relief valve, SAE 10 cartridge, for 60 l/min, with ranges up to 150, 250 or 350 bar.

Valve: Pilot-operated valve 60 l/min 150 bar CAV 10-2 [0063010000]

Quantity

Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.1339.0063010000

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

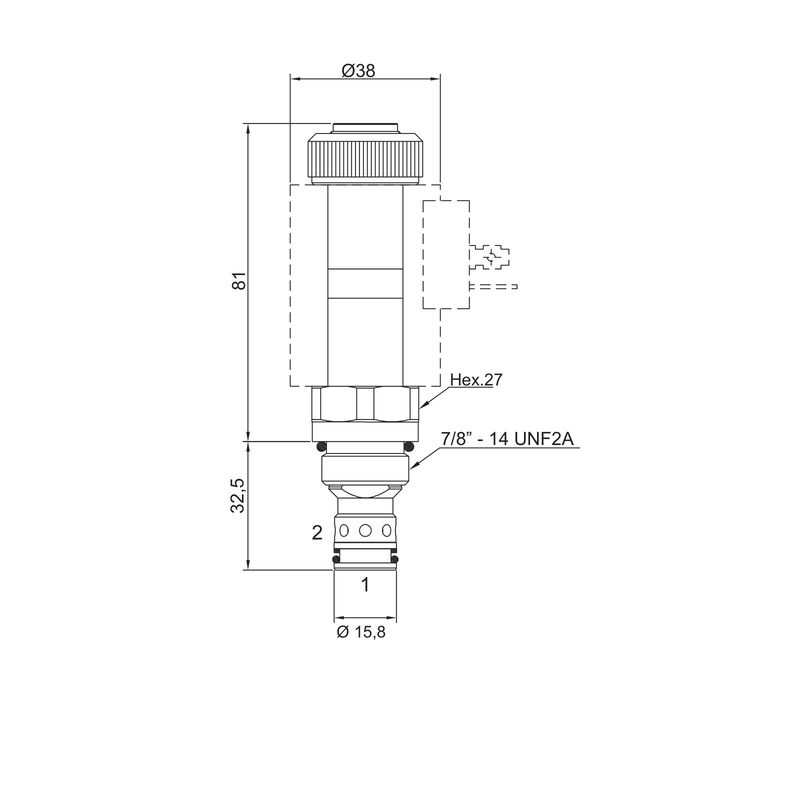

NEM CT-063 cartridge that limits pressure in proportion to the current in the coil: the higher the current, the higher the opening pressure. It screws into manifolds with the NEM C230000 cavity (SAE 10, 2-way, 7/8-14 UNF thread) and is used to set the maximum pressure of a circuit remotely.

Flow: 60 l/min
Maximum working pressure: 350 bar
Setting ranges: 0-150, 0-250 or 0-350 bar
Maximum current: 1800 mA at 12 V DC and 900 mA at 24 V DC
NBR and PTFE seals

Codes ending in 0100 have an emergency push pin to operate the valve by hand; codes ending in 0000 have no manual override. The digit after 00630 is the range (1, 2 or 3). The CT-9800 coil is sold separately.

Source: NEM cartridge valves technical catalogue, 09.7.
