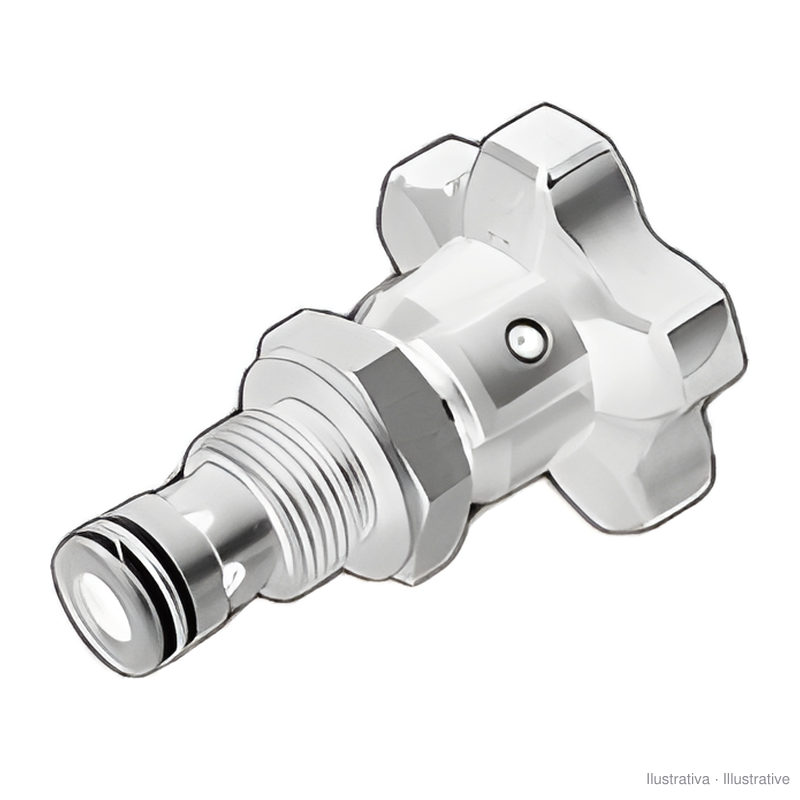

Duplomatic PLK08 relief valve with handwheel (SAE 08 cartridge)

Name: Duplomatic PLK08 relief valve with handwheel (SAE 08 cartridge)
Brand: Duplomatic
Availability: InStock

€72.32

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(58.8 € Excluding VAT. VAT at the legal rate applies.)

Duplomatic PLK08 direct-acting pressure relief valve, SAE 08 cartridge, with handwheel, in ranges up to 70, 140, 210, 280 or 350 bar.

PLK08: PLK08-070/10N/K

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.PLK0807010NK

€58.80 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Description
Product Details

Direct-acting pressure relief cartridge, to screw into an SAE 08 cavity (3/4-16 UNF-2B thread). Maximum flow is small, about 3 l/min, so it is meant for pilot circuits and low-flow circuits, not for relieving the full flow of a pump.

Maximum pressure: 400 bar
Ranges in the list: 070, 140, 210, 280 and 350 (setting up to that value in bar)
K: handwheel for manual adjustment
Series 10

Choose the range by the pressure to be set and check the manifold cavity before ordering.

Source: Duplomatic Product Overview Industrial Hydraulics product guide.
