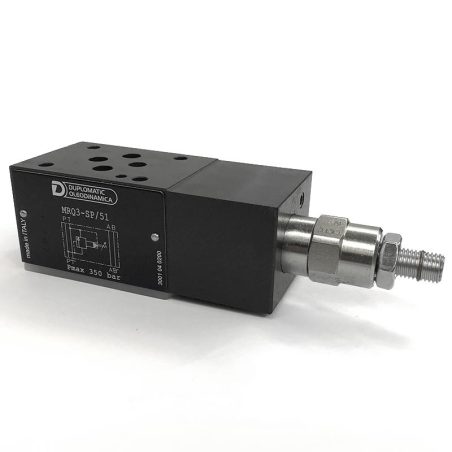

Duplomatic MRQ-SP NG6 (CETOP 3) modular relief valve

Name: Duplomatic MRQ-SP NG6 (CETOP 3) modular relief valve
Brand: Duplomatic
Availability: InStock

€205.15

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(166.79 € Excluding VAT. VAT at the legal rate applies.)

Duplomatic MRQ-SP pilot-operated pressure relief valve, modular NG6 (CETOP 3), on line P relieving to T, up to 75 l/min.

Duplomatic NG6 (CETOP 3): MRQ3-SP/51

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.MRQ3SP

€166.79 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Pilot-operated pressure relief valve in modular version, to fit as a sandwich between the solenoid valve and the NG6 (CETOP 3, ISO 4401-03) subplate, without pipes. The SP version limits the pressure on line P and relieves to T, setting the maximum pressure of the circuit.

Maximum working pressure: 350 bar
Maximum flow: 75 l/min
Ranges: MRQ3 up to 70 bar, MRQ4 up to 140 bar, MRQ5 up to 210 bar, MRQ6 up to 350 bar
Adjustment by screw with lock nut; NBR seals

Choose the range that covers the working pressure. The stack is clamped with tie rods or bolts of the right length for the height of the modules.

Source: Duplomatic MRQ technical catalogue, version 61 220/110 ED.
