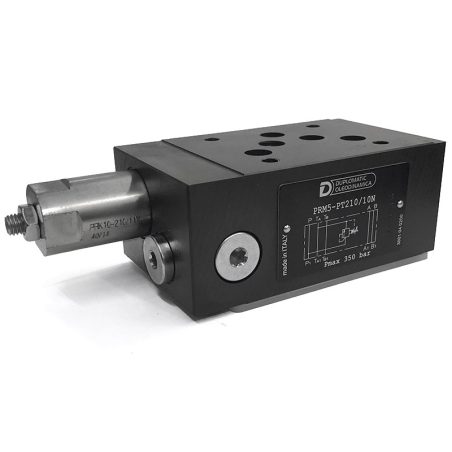

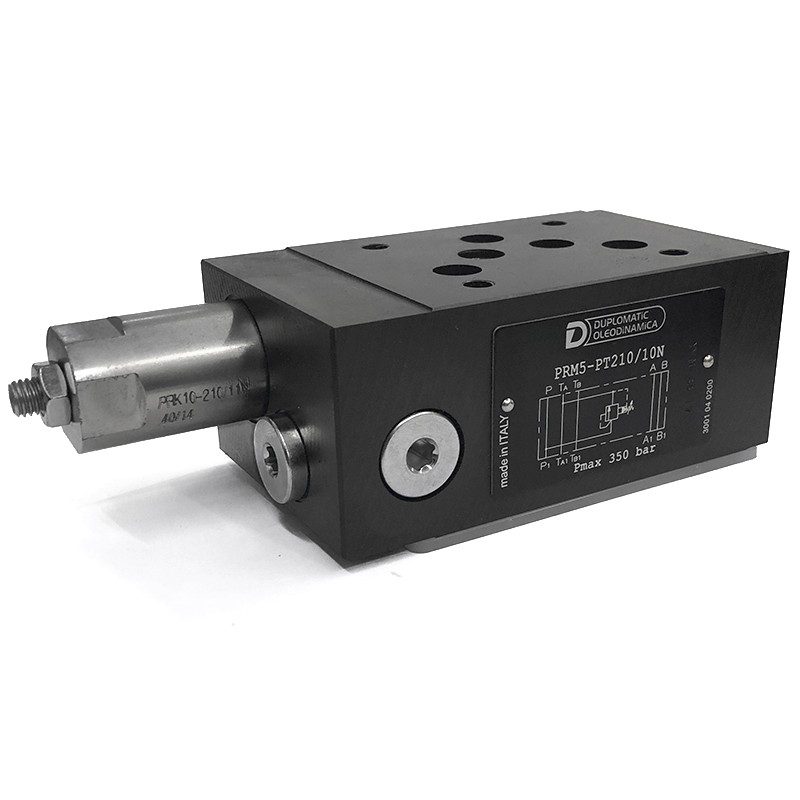

Duplomatic PRM5-PT NG10 (CETOP 5) modular relief valve

Name: Duplomatic PRM5-PT NG10 (CETOP 5) modular relief valve
Brand: Duplomatic
Availability: InStock

€331.65

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(269.63 € Excluding VAT. VAT at the legal rate applies.)

Duplomatic PRM5-PT pilot-operated pressure relief valve, modular NG10 (CETOP 5), on line P relieving to T, up to 120 l/min.

Duplomatic DS5: PRM5-PT070/10N

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.PRM5PT070

€269.63 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Pilot-operated relief valve in modular version, to fit as a sandwich in an NG10 (CETOP 5, ISO 4401-05) stack, without pipes. The PT version limits the pressure on line P and relieves to T.

Maximum working pressure: 350 bar
Maximum flow: 120 l/min
Ranges: 070 (6 to 70 bar), 140 (6 to 140 bar), 210 (6 to 210 bar) and 350 (6 to 350 bar)
Adjustment by hex socket screw and lock nut; NBR seals (N)

The code gives the range: PRM5-PT210/10N sets from 6 to 210 bar. To limit line A or B instead of P there are the AT and BT versions.

Source: Duplomatic PRM5 technical catalogue, version 61 310/314 ED.
