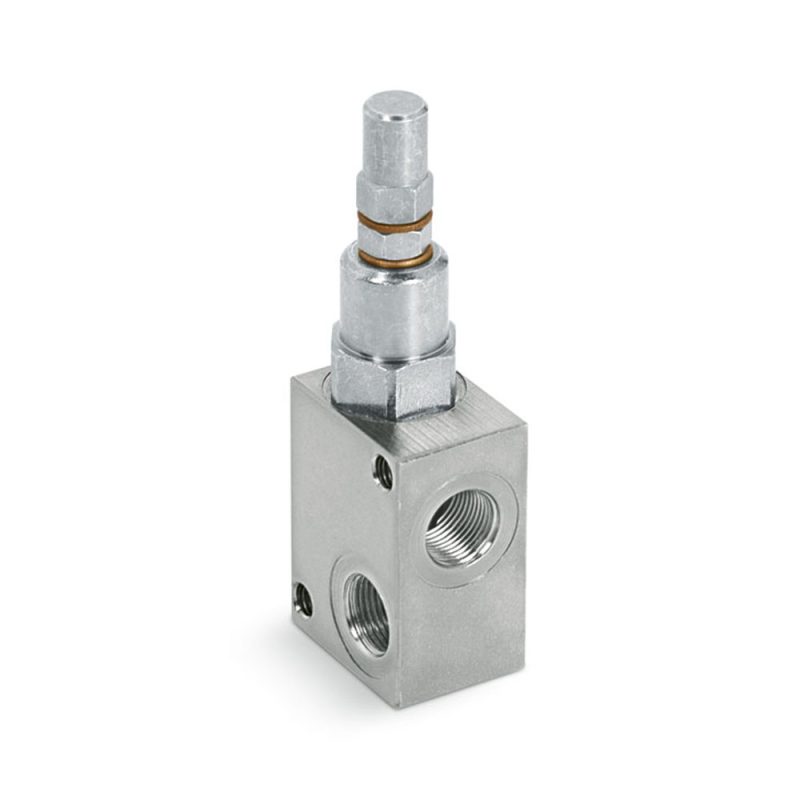

Marchesini VMP L light in-line pressure relief valve

Name: Marchesini VMP L light in-line pressure relief valve
Brand: Oleodinamica Marchesini
Availability: InStock

€31.31

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(25.46 € Excluding VAT. VAT at the legal rate applies.)

Marchesini VMP L light pressure relief valve, for in-line mounting, 1/4" and 3/8", up to 40 l/min.

Relief valves: 1/4" - V0689/50V

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA01.V068950V

€25.46 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Light, compact version of the VMP relief valve, direct acting, with guided cone poppet. It opens when the pressure reaches the setting and relieves to T. P connects to the pressure line and T to the return; port P is reversible.

V0689: G 1/4", up to 30 l/min
V0690: G 3/8", up to 40 l/min
Zinc-plated steel body, hardened and ground steel internals, NBR seals

The suffix gives the spring: no number, 10-180 bar (standard); /50, 10-50 bar; /300, 80-300 bar. V adds a handwheel for adjustment without tools.

Source: Oleodinamica Marchesini technical catalogue, section 4 Valvole di massima pressione, 2008.
