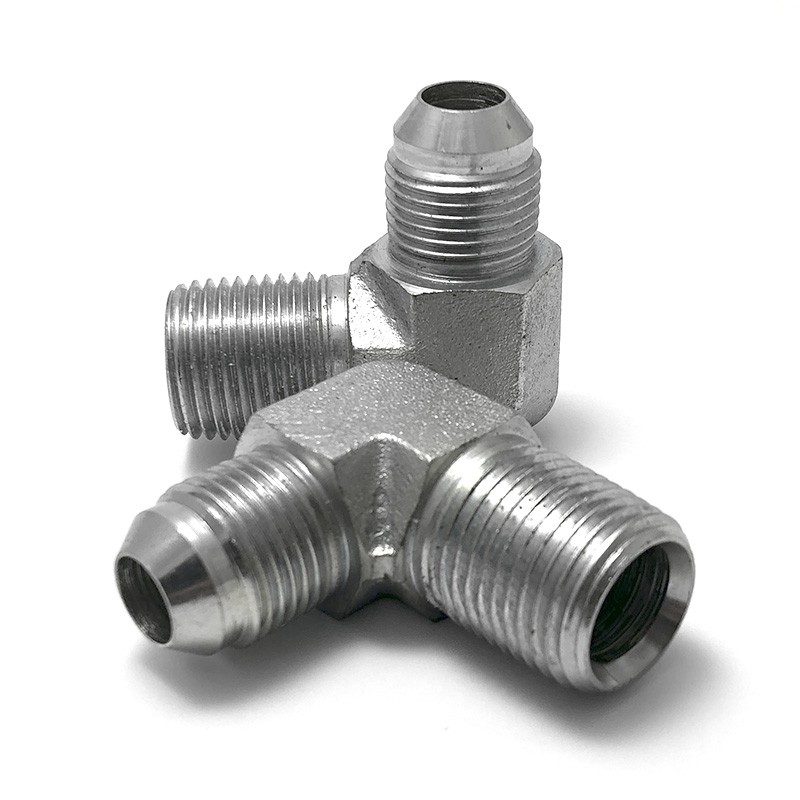

90° male-male JIC-BSPT elbow (S550)
search
  • 90° male-male JIC-BSPT elbow (S550)

90° male-male JIC-BSPT elbow (S550)

€5.54
Tax included Delivery in 1 to 5 working days.

(4.5 € No tax)

90° elbow with a male JIC 37° end and a male tapered BSPT thread, for BSPT ports. S550 series, JIC from 7/16" to 3/4" and BSPT from 1/8" to 1/2".

JIC accessory: 3/4" - 1/2"
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0617.3412

€4.50 excl. VAT

Request a commercial proposal

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

90° elbow, S550 series, with a male BSPT end on one side and a male JIC 37° end on the other. The BSPT thread is tapered and seals on the thread itself, with thread sealant or tape; the JIC side takes the female hose fitting and seals on the 37° cone.

There are 6 combinations, with JIC from 7/16" to 3/4" and BSPT from 1/8" to 1/2". In the option list the first size is the JIC and the second the BSPT.

Check that the port has a tapered thread: a parallel BSP male does not seal properly in a BSPT port, nor a BSPT male in a parallel port.

1.0617.3412

Specific References

ean13
2200007652501

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (6)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
7/16" - 1/8"
1.0617.71618
In stock
€8.75
7/16" - 1/4"
1.0617.71614
Last units
€8.86
9/16" - 1/8"
1.0617.91618
On request
9/16" - 1/4"
1.0617.91614
On request
3/4" - 3/8"
1.0617.3438
In stock
€8.28
3/4" - 1/2"
1.0617.3412
In stock
€5.54
