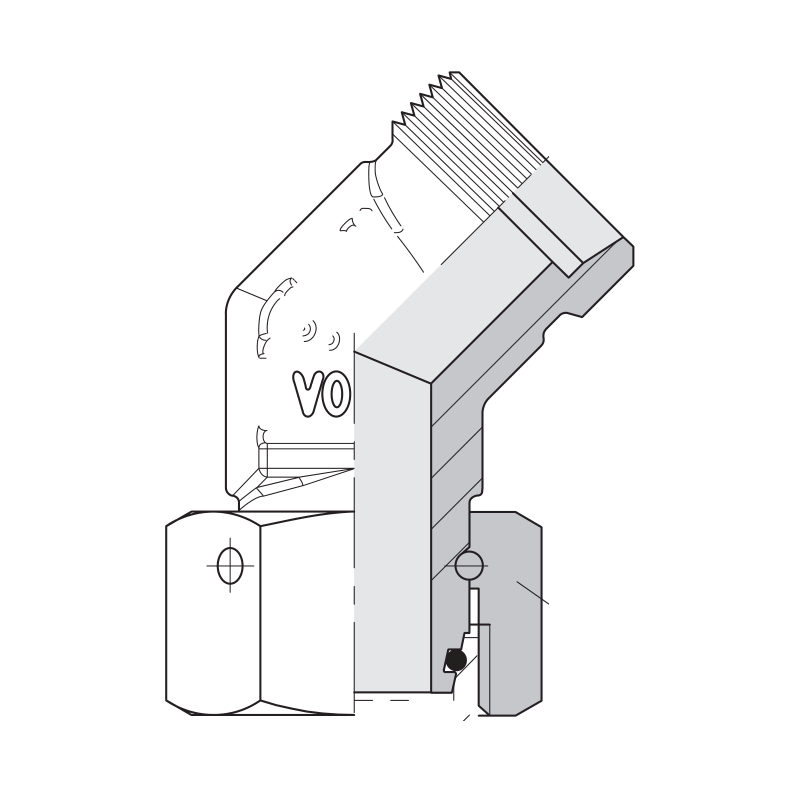

EV 45° male-female elbow

45° elbow for the DIN 2353 system (ISO 8434-1, 24° cone). One end is the tube connection, for use with a nut and cutting ring; the other has a stud end with taper and O-ring that goes into a DIN body in place of a tube and can be turned before final tightening. This lets you set the direction of the line without bending the tube.

• L series (6 to 42 mm) and S series (6 to 38 mm)
• FKM O-ring, according to the VOSS datasheet
• Nominal pressure in the VOSS datasheet: L series 315 bar up to 18 mm and 160 bar from 22 to 42 mm; S series 630 bar up to 14 mm, 400 bar from 16 to 30 mm and 315 bar at 38 mm

Choose by the tube outside diameter and the series (L or S), which you can tell from the nut thread: 12L takes an M18x1.5 nut and 12S an M20x1.5 nut. Sold as the body only: the DIN nut and cutting ring are sold separately and are listed in this item's accessories.

Source: VOSS Hydraulic connection technology technical catalogue, version 7004695700/201812/01.
