WSV bulkhead elbow

€12.40
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(10.08 € Excluding VAT. VAT at the legal rate applies.)

VOSS WSV bulkhead elbow to pass a DIN tube through a plate.

DIN WSV accessory: 10L
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5925.10L

€10.08 excl. VAT (VAT added at the legal rate)

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

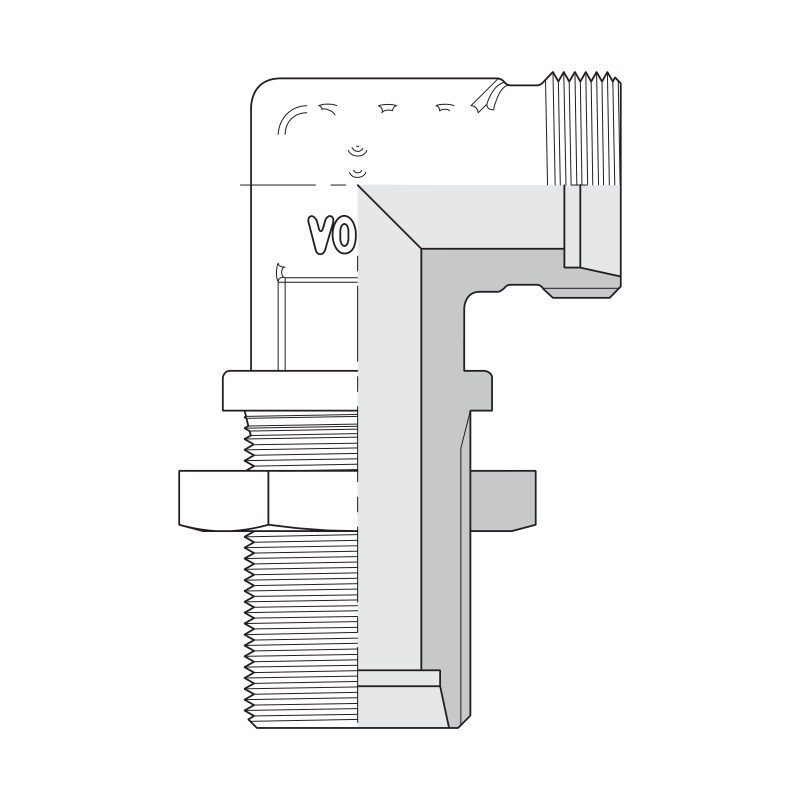

The WSV is a 90° elbow with a long threaded leg that passes through the plate, panel or tank wall and is held with a locknut. Both ends connect to DIN 2353 tube (ISO 8434-1, 24° cone) by means of a nut and cutting ring.

  • L series (6 to 42 mm) and S series (6 to 38 mm)
  • Nominal pressure in the VOSS datasheet: L series 315 bar up to 18 mm and 160 bar from 22 to 42 mm; S series 630 bar up to 14 mm, 400 bar from 16 to 30 mm and 315 bar at 38 mm

Before ordering, check the tube diameter, the series and the plate thickness, which has to fit within the threaded length (dimensions in the datasheet). The locknut is also sold separately. Sold as the body only: the DIN nut and cutting ring are sold separately and are listed in this item's accessories.

Source: VOSS Hydraulic connection technology technical catalogue, version 7004695700/201812/01.

1.5925.10L

Specific References

Internal barcode
2200001263604
MPN
0138102007

You might also like

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (19)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
6L
1.5925.6L
In stock
6S
1.5925.6S
In stock
8L
1.5925.8L
Last units
8S
1.5925.8S
In stock
10L
1.5925.10L
In stock
10S
1.5925.10S
In stock
12L
1.5925.12L
In stock
12S
1.5925.12S
Last units
15L
1.5925.15L
In stock
16S
1.5925.16
In stock
18L
1.5925.18L
In stock
20S
1.5925.20
Last units
22L
1.5925.22L
In stock
25S
1.5925.25S
Last units
28L
1.5925.28L
In stock
30S
1.5925.30
Last units
35 L
1.5925.35L
In stock
38S
1.5925.38
Last units
42L
1.5925.42L
Last units
