KOR female-male reducer
search
  • KOR female-male reducer
  • KOR female-male reducer

KOR female-male reducer

€5.03
Tax included Delivery in 1 to 5 working days.

(4.09 € No tax)

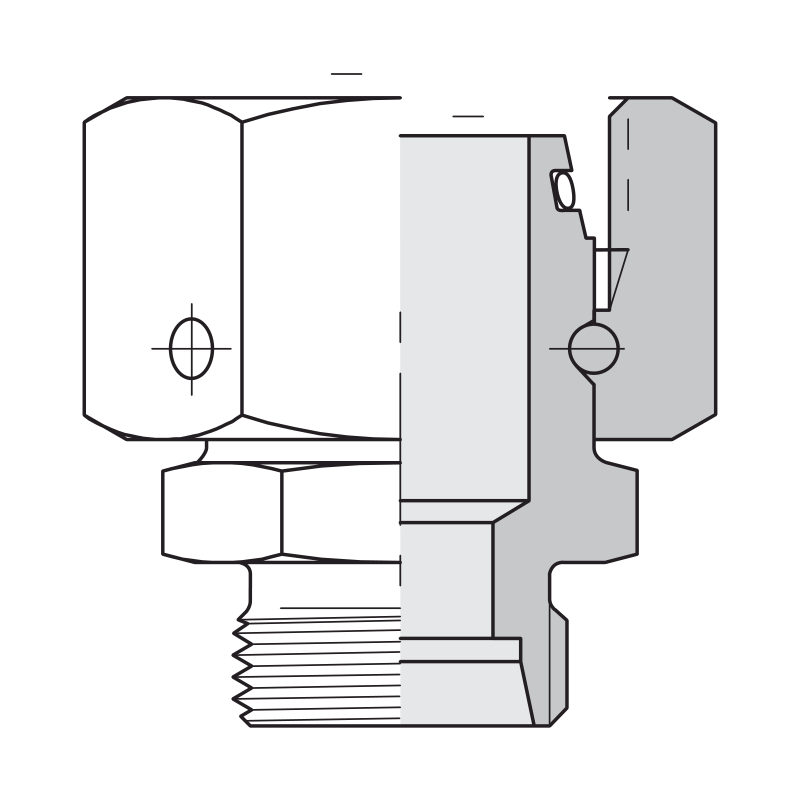

VOSS KOR female-male reducer to go from one DIN tube to a smaller one.

DIN KOR accessory: 10L - 6L
Quantity
In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5914.106L

€4.09 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

The KOR fits into a DIN 2353 body (ISO 8434-1, 24° cone) in place of the larger tube, with a taper and O-ring end held by that body's nut, and takes the smaller tube on the other side by means of a nut and cutting ring. It saves changing the elbow, tee or union just because the tube size changes.

  • The option shows the body first and then the tube: 18L - 12L connects a 12 mm tube to an 18 mm body, L series
  • Combinations within the L series and within the S series
  • FKM O-ring, according to the VOSS datasheet; nominal pressure between 250 and 800 bar, depending on the combination

Check the size and series of the body the reducer goes into and of the tube to be connected. Sold as the body only: the DIN nut and cutting ring are sold separately and are listed in this item's accessories.

Source: VOSS Hydraulic connection technology technical catalogue, version 7004695700/201812/01.

1.5914.106L

Specific References

ean13
2200001241404

You might also like

Customers who bought this product also bought:

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (58)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
8L - 6L
1.5914.86L
In stock
10L - 6L
1.5914.106L
In stock
10S - 6S
1.5914.106S
In stock
10L - 8L
1.5914.108L
In stock
12L - 6L
1.5914.126L
In stock
12L - 8L
1.5914.128L
In stock
12S - 8S
1.5914.128S
In stock
12L - 10L
1.5914.1210L
Last units
12S - 10S
1.5914.1210S
In stock
15L - 6L
1.5914.156L
In stock
15L - 8L
1.5914.158
In stock
15L - 10L
1.5914.1510
Last units
15L - 12L
1.5914.1512
In stock
16S - 8S
1.5914.168
In stock
16S - 10S
1.5914.1610
Last units
16S - 12S
1.5914.1612
In stock
18L - 6L
1.5914.186L
In stock
18L - 8L
1.5914.188L
Last units
18L - 8L (1.5914.188)
1.5914.188
In stock
18L - 10L
1.5914.1810
In stock
18L - 12L
1.5914.1812
In stock
18L - 15L
1.5914.1815
In stock
20S - 8S
1.5914.208
Last units
20S - 10S
1.5914.2010
Last units
20S - 12S
1.5914.2012
In stock
20S - 16S
1.5914.2016
In stock
22L - 8L
1.5914.228
In stock
22L - 10L
1.5914.2210
In stock
22L - 12L
1.5914.2212
In stock
22L - 15L
1.5914.2215
In stock
22L - 18L
1.5914.2218
In stock
25S - 8S
1.5914.258
Last units
25S - 10S
1.5914.2510
Last units
25S - 12S
1.5914.2512
Last units
25S - 16S
1.5914.2516
In stock
25S - 16S NF
1.5914.2516NF
Last units
25S - 20S
1.5914.2520
In stock
28L - 8L
1.5914.288
Last units
28L - 10L
1.5914.2810L
In stock
28L - 12L
1.5914.2812
In stock
28L - 15L
1.5914.2815
Last units
28L - 18L
1.5914.2818
In stock
28L - 22L
1.5914.2822
In stock
30S -16S
1.5914.3016
In stock
30S - 8S
1.5914.308
Last units
30S - 12S
1.5914.3012
In stock
30S - 20S
1.5914.3020
In stock
30S - 25S
1.5914.3025
In stock
35L - 15L
1.5914.3515
Last units
35L - 18L
1.5914.3518L
In stock
35L - 22L
1.5914.3522
Last units
35L - 28L
1.5914.3528
In stock
38S - 20S
1.5914.3820
In stock
38S - 25S
1.5914.3825
In stock
38S - 30S
1.5914.3830
In stock
42L - 22L
1.5914.4222
Last units
42L - 28L
1.5914.4228
Last units
42L - 35L
1.5914.4235
Last units
