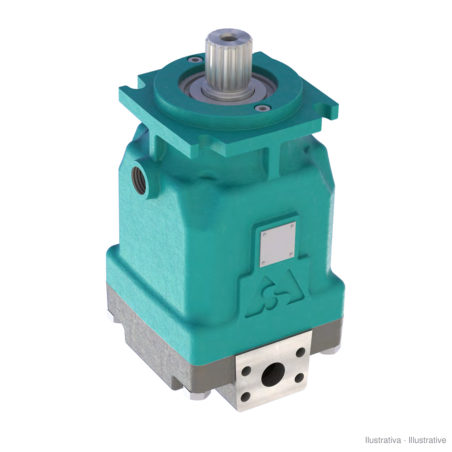

M+S MAP100 piston motor, SAE-C (4C) or ISO (4M) flange
search
  • M+S MAP100 piston motor, SAE-C (4C) or ISO (4M) flange

M+S MAP100 piston motor, SAE-C (4C) or ISO (4M) flange

€4,289.51
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(3487.41 € Excluding VAT. VAT at the legal rate applies.)

M+S MAP100 axial piston hydraulic motor, fixed displacement and heavy-duty build, from 63 to 100 cc/rev, with SAE-C or ISO 3019-2 4-bolt flange.

MAP motor: MAP4C92SR9VDARF35012
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. MS.P4C92SR9VDARF35012

€3,487.41 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: Splined shafts on pumps and motors: SAE, DIN 5480 and DIN 5482

The M+S Hydraulic MAP motors are swashplate axial piston motors with fixed displacement. They are heavily built: cast iron housing, hardened shaft, radial and axial roller bearings and a hardened steel cylinder block. According to the manufacturer, the starting torque is close to that of a bent-axis motor, with less pulsation and vibration in operation.

The combinations of this item belong to the MAP100 frame (63, 71, 75, 92 and 100 cc/rev), with 4C flange (SAE-C, 4-bolt) or 4M flange (ISO 3019-2, 4-bolt). Datasheet values: 350 bar continuous, 420 bar intermittent, up to 3500 rpm and 550 Nm. In the code, T means twin side ports, E rear ports and V FKM seals; DARF350 combines anti-cavitation, relief (350 bar) and flush valves.

The datasheet lists agricultural and road-building machinery, mining, fan and slewing drives and hydrostatic transmissions as applications.

The motor always needs a case drain connected to the tank and must be filled with oil before starting.

Source: M+S Hydraulic Axial Piston Motors and Pumps (MAP/PAP) technical catalogue, version 1.4g, April 2018.

MS.P4C92SR9VDARF35012

Specific References

Internal barcode
2200111712153
MPN
P4C92SR9VDARF35012

You might also like

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (20)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
MAP4C92SP9VDARF350
MS.P4C92SP9VDARF350
Last units
MAP4C92SR9VDARF35012
MS.P4C92SR9VDARF35012
Last units
MAP4CT63CV2V
MS.P4CT63CV2V
On request
MAP4CT63DU9V
MS.P4CT63DU9V
On request
MAP4CT63SK2V
MS.P4CT63SK2V
On request
MAP4CT63SK9V
MS.P4CT63SK9V
Last units
MAP4CT71DU9V
MS.P4CT71DU9V
Last units
MAP4CT75CV2V
MS.P4CT75CV2V
On request
MAP4CT75DU9V
MS.P4CT75DU9V
Last units
MAP4CT75SK2V
MS.P4CT75SK2V
On request
MAP4CT75SK9V
MS.P4CT75SK9V
On request
MAP4CT92CV2V
MS.P4CT92CV2V
On request
MAP4CT92DU9V
MS.P4CT92DU9V
Last units
MAP4CT92SK2V
MS.P4CT92SK2V
On request
MAP4CT100CV2V
MS.P4CT100CV2V
On request
MAP4ME71ST9V
MS.P4ME71ST9V
On request
MAP4MT75CV9V
MS.P4MT75CV9V
On request
MAP4MT92CV9V
MS.P4MT92CV9V
Last units
MAP4MT92ST9V
MS.P4MT92ST9V
Last units
MAP4MT100CV9V
MS.P4MT100CV9V
Last units
