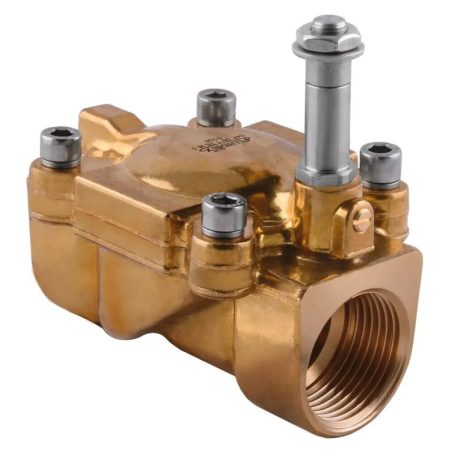

Indirect-acting 2/2 NC solenoid valve G 1/2" Ø12 mm, brass, NBR seals, without coil (Aignep Fluidity 04F 05 1 12 N 0)
€27.74
Tax included
Delivery in 1 to 5 working days.
(22.55 € No tax)
Aignep 04F indirect-acting (pilot-operated) solenoid valve, 2/2 normally closed, G 1/2", brass body and NBR seals. Supplied without coil. End-of-stock item.
Aignep 04F series fluid solenoid valve (code 04F 05 1 12 N 0). It is indirect-acting: the coil opens a small pilot orifice and the fluid pressure itself opens the diaphragm. It therefore needs a minimum pressure difference between inlet and outlet to work.
- 2/2-way, normally closed; G 1/2" thread (ISO 228); Ø12 mm orifice; Kv 3.03 m³/h
- Brass body; guide tube, cores and spring in stainless steel
- Differential pressure: from 0.15 bar up to 11.2 bar with a 6.5 W DC coil, or up to 25 bar with 8 W DC or 11 VA AC coils
- NBR seals: -10 to +90 °C; air, inert gas, water up to 75 °C, mineral oils, diesel and fuel oil
- Operator Ø10 mm
The coil is bought separately: choose an Aignep coil for a Ø10 mm operator, in the voltage of your control panel.
Source: Aignep technical catalogue, Catálogo Tarifa 2016.
04F 05 1 12 N 0
