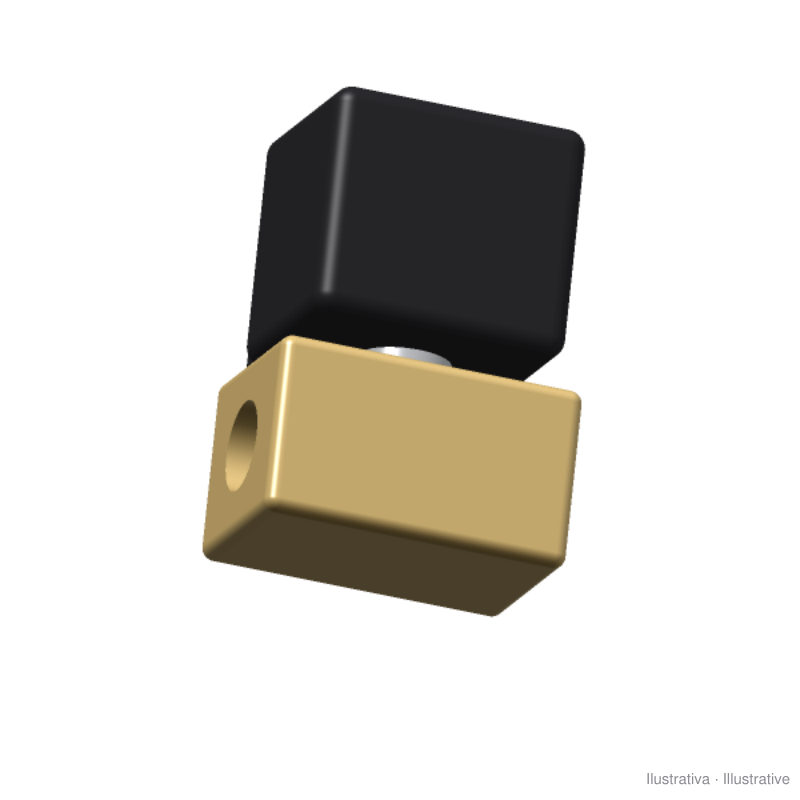

Direct-acting 2/2 NC solenoid valve G 1/4" Ø4 mm, brass, FKM, Ø13 mm operator, without coil (Aignep 02F 03 1 04 V 0)
€11.56
Price including VAT at the legal rate
Delivery in 1 to 5 working days.
(9.4 € Excluding VAT. VAT at the legal rate applies.)
Aignep 02F direct-acting solenoid valve, 2/2 normally closed, G 1/4", brass body and FKM seals for oils and fuels. Supplied without coil. End-of-stock item.
Aignep 02F series fluid solenoid valve (code 02F 03 1 04 V 0). It is direct-acting: the moving core opens and closes the orifice without help from the pressure, so it works from 0 bar. With no power it is closed; it opens while the coil is energised.
- 2/2-way, normally closed; G 1/4" thread (ISO 228); Ø4 mm orifice; Kv 0.35 m³/h
- Brass body; guide tube, cores and spring in stainless steel
- Maximum allowable pressure: 40 bar
- FKM seals: -10 to +140 °C; mineral oils, petrol and fuel oil
- Operator Ø13 mm
The coil is bought separately: it must be an Aignep coil for a Ø13 mm operator, such as the SOL20.
Source: Aignep technical catalogue, Catálogo Tarifa 2016.
02F 03 1 04 V 0
