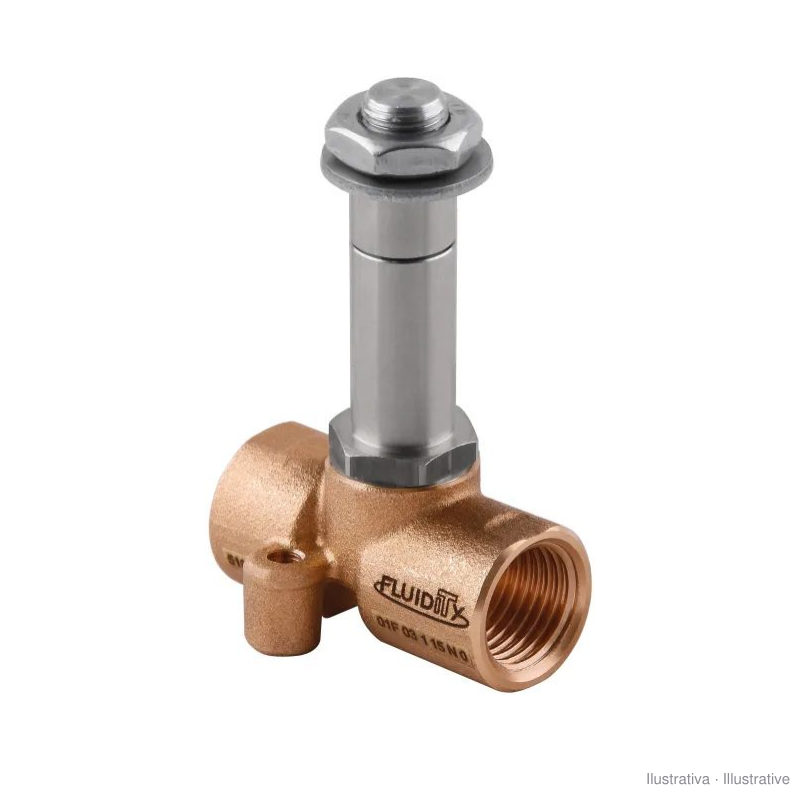

Direct-acting 2/2 NC solenoid valve G 1/4" Ø2 mm, brass, NBR, Ø10 mm operator, without coil (Aignep 01F 03 1 02 N 0)
€6.67
Price including VAT at the legal rate
Delivery in 1 to 5 working days.
(5.42 € Excluding VAT. VAT at the legal rate applies.)
Aignep 01F direct-acting solenoid valve, 2/2 normally closed, G 1/4" with Ø2 mm orifice, brass body and NBR seals. Supplied without coil. End-of-stock item.
Aignep 01F series fluid solenoid valve (code 01F 03 1 02 N 0). It is direct-acting and opens from 0 bar; with no power it is closed. With NBR seals it is the general-purpose version, for air, water and mineral oils.
- 2/2-way, normally closed; G 1/4" thread (ISO 228); Ø2 mm orifice; Kv 0.09 m³/h
- Maximum differential pressure depending on the coil: 11 bar (6.5 W DC), 28.7 bar (8 W DC), 13.6 bar (7.5 VA AC), 32.3 bar (11 VA AC)
- Brass body; guide tube, cores and spring in stainless steel
- NBR seals: -10 to +90 °C; air, inert gas, water up to 75 °C, mineral oils, diesel and fuel oil
- Operator Ø10 mm
The coil is bought separately: an Aignep coil for a Ø10 mm operator (SOL10 22 mm or SOL11 30 mm).
Source: Aignep technical catalogue, Catálogo Tarifa 2016.
01F 03 1 02 N 0
