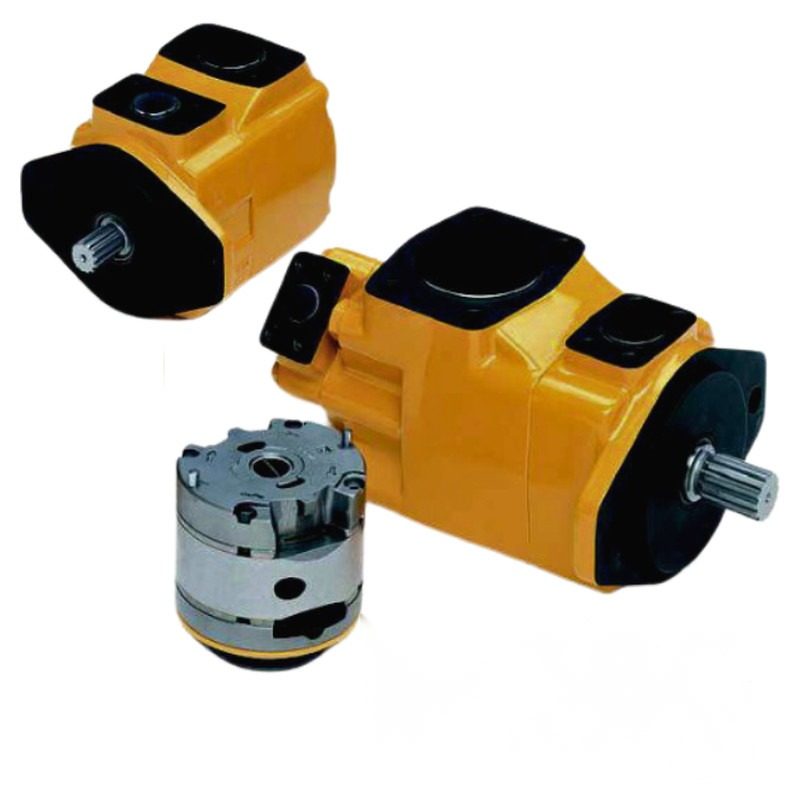

B&C HQ double vane pump with ISO 14 flange

Name: B&C HQ double vane pump with ISO 14 flange
Availability: InStock

€1,991.33

Tax included Delivery in 1 to 5 working days.

(1618.97 € No tax)

B&C HQ22 and HQ31 double vane pumps, with splined shaft and 4-bolt ISO 14 flange, up to 210 bar.

B&C pump: HQ22G1717CD50BV

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.5240.HQ22G1717CD50BV

€1,618.97 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The B&C HQ pumps are fixed displacement double vane pumps with a splined shaft and 4-bolt ISO 14 flange (shaft code 50). B&C presents the HQ series as particularly suited to trucks, especially refuse compactors.

HQ22G1717CD50BV: two sections of 55.2 cc/rev (cartridge 17)
HQ22G1919CD50BV: two sections of 60.0 cc/rev (cartridge 19)
HQ22G2121CD50BV: two sections of 67.5 cc/rev (cartridge 21)
HQ31G2411AA50: 78.3 cc/rev at the shaft end and 36.4 cc/rev at the cover end, BSP threaded ports
Maximum pressure with mineral oil: 210 bar

On the HQ22, the letter B gives the ports: 2.1/2" suction, 1.1/4" SAE outlet P1 and 1" SAE outlet P2; the final V means FPM (Viton) seals. Check the rotation, which is marked L when it is anticlockwise.

Source: B&C HQ22 double pump data sheet; B&C HQ series technical catalogue, 2008.

Reference 1.5240.HQ22G1717CD50BV
