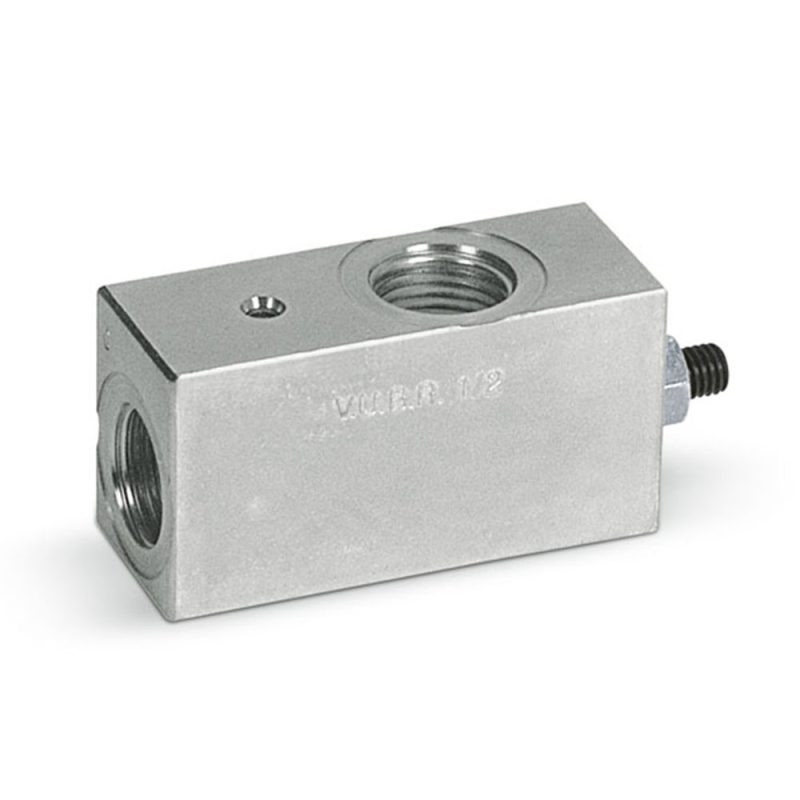

Marchesini VUBR adjustable hose burst valve

Name: Marchesini VUBR adjustable hose burst valve
Brand: Oleodinamica Marchesini
Availability: InStock

€27.91

Tax included Delivery in 1 to 5 working days.

(22.69 € No tax)

Marchesini VUBR adjustable hose burst valve, 3/8" and 1/2".

Check valves: 3/8" - V0785

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA04.V0785

€22.69 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VUBR protects against uncontrolled lowering of the load when a hose bursts: when the flow surges above the set value, the valve closes. Unlike the cartridge hose burst valve, the closing flow is adjusted from outside, on the flow adjuster; one turn is about 15 l/min. When adjusting, keep the sealing nut against the valve to avoid oil leaking.

3/8" (V0785): G 3/8" threads, up to 40 l/min
1/2" (V0795): G 1/2" threads, up to 70 l/min

Maximum pressure 300 bar. Zinc-plated steel body, hardened and ground steel internal parts, ball seal. Connect V to the supply and C to the actuator, as close to the cylinder as possible.

Source: Oleodinamica Marchesini technical catalogue, section Check valves; Oleodinamica Marchesini general catalogue 2018.
