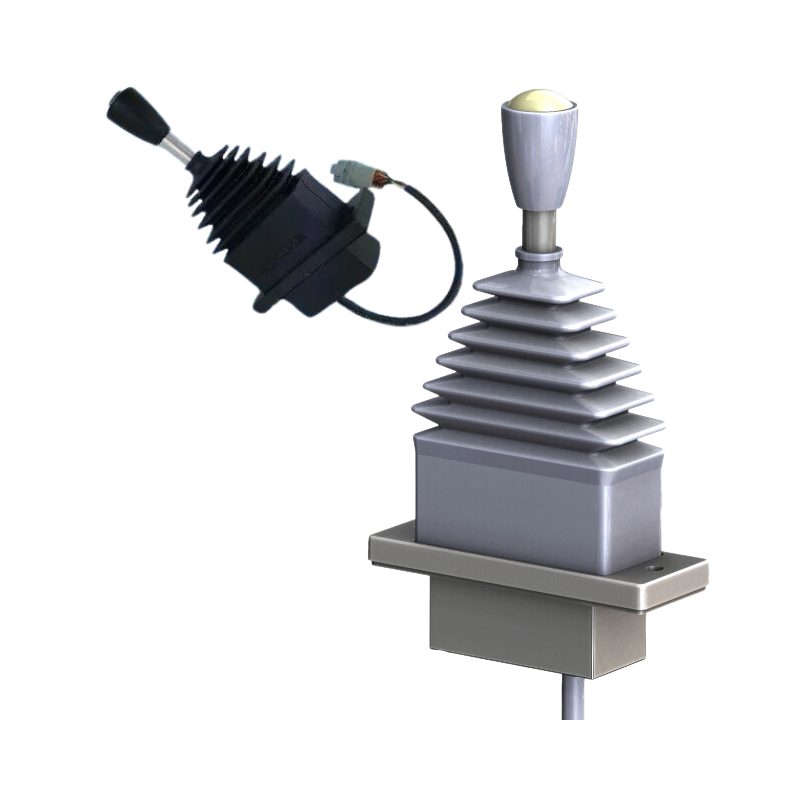

MAP3 joystick with friction - marine
€861.11
Tax included
(700.09 € No tax)
Single-axis electronic joystick, marine version, with friction hold and two PWM outputs for one proportional section.
Special marine version of the MAP joystick, single axis, with a lever (there is also a finger version, the MAP3L). This one has friction: the lever stays where you leave it.
It reads the position with Hall-effect sensors, with no contact and no wear, and drives the two coils of one section of a proportional directional valve directly, with closed-loop current control. It also has a digital output for the unloading valve, which switches on when either side is operated, and a fault output, which switches off if there is a failure.
- Supply: 12 or 24 V DC
- Factory setting: 250 mA minimum and 850 mA maximum on each side, ramps at zero, PWM at 100 Hz, linear curve
- Unloading valve: switches off 0.5 s after the proportional outputs stop
- Travel: ±26°; IP67 protection; works from -40 to +70 °C
- Connection: 0.2 m cable with Deutsch DT04-8 connector
The values can be changed with the SepSim software and the AISR adapter, sold separately.
Source: Faber-Com MAP3 data sheet, v100, 02/07/19; Faber-Com PMAP3SSAR data sheet, 08/03/19.
1.FBC.PMAP3SSAF
Specific References
- ean13
- 2200111737361
