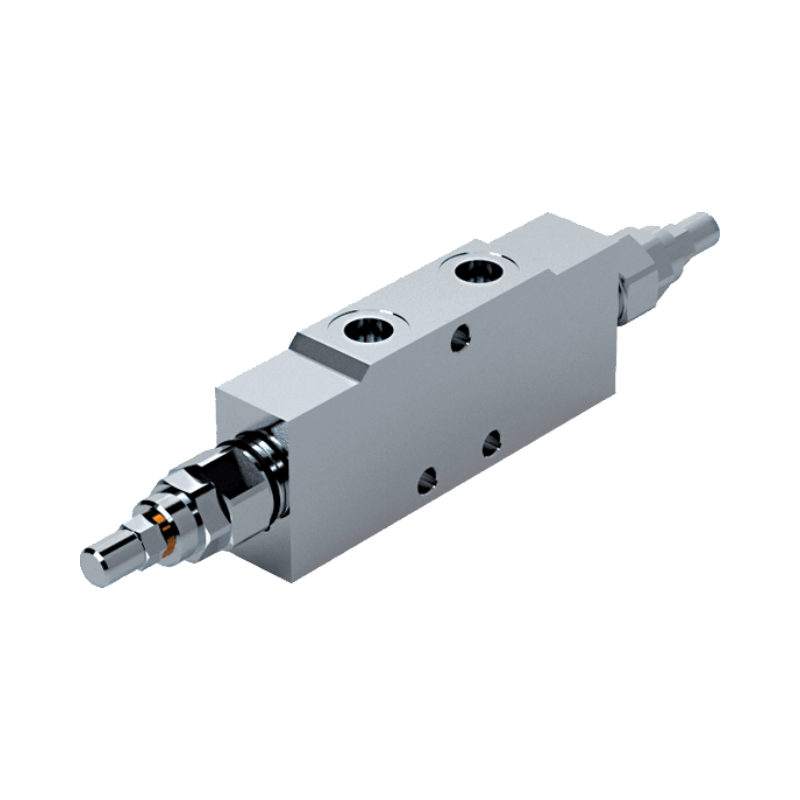

Marchesini VBCD DE A CC double overcentre valve for closed centre

Name: Marchesini VBCD DE A CC double overcentre valve for closed centre
Brand: Oleodinamica Marchesini
Availability: InStock

€185.91

Tax included Delivery in 1 to 5 working days.

(151.15 € No tax)

Marchesini VBCD DE A CC double overcentre valve, for closed centre.

Overcentre valves: 3/8" - V0421

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA05.V0421

€151.15 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VBCD DE A CC is Marchesini's type A double overcentre valve in the version for closed-centre directional valves. It controls the cylinder or motor in both directions, lowers the load without letting it run away and limits the pressure in case of shocks. It is not sensitive to back pressure, so it works where a normal overcentre valve cannot control the load.

3/8" (V0421): G 3/8" threads, up to 40 l/min
1/2" (V0423): G 1/2" threads, up to 60 l/min

Maximum pressure 350 bar and pilot ratio 1:4.5. The body has 8.5 mm fixing holes. Connect V1 and V2 to the directional valve and C1 and C2 to the actuator, and set the valve at least 1.3 times above the pressure caused by the load.

Source: Oleodinamica Marchesini general catalogue 2018; Oleodinamica Marchesini technical catalogue, section Overcentre valves.
