NEM 3/2 direct-acting solenoid valve (cartridge)

€83.49
Price including VAT at the legal rate Delivery in 1 to 5 working days.

(67.88 € Excluding VAT. VAT at the legal rate applies.)

NEM 3/2-way direct-acting cartridge solenoid valves, SAE 08, 10 and 12, from 13.5 to 50 l/min and up to 350 bar. Coil sold separately.

Valve: 3/2 direct-acting 15 l/min 250 bar CAV 08-3 (diagram 1) [0402100000]
Quantity
Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.1339.0402100000

€67.88 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

NEM 3-way 2-position direct-acting cartridge solenoid valves, to screw into a manifold or an in-line body. The coil is ordered separately. NBR and PTFE seals.

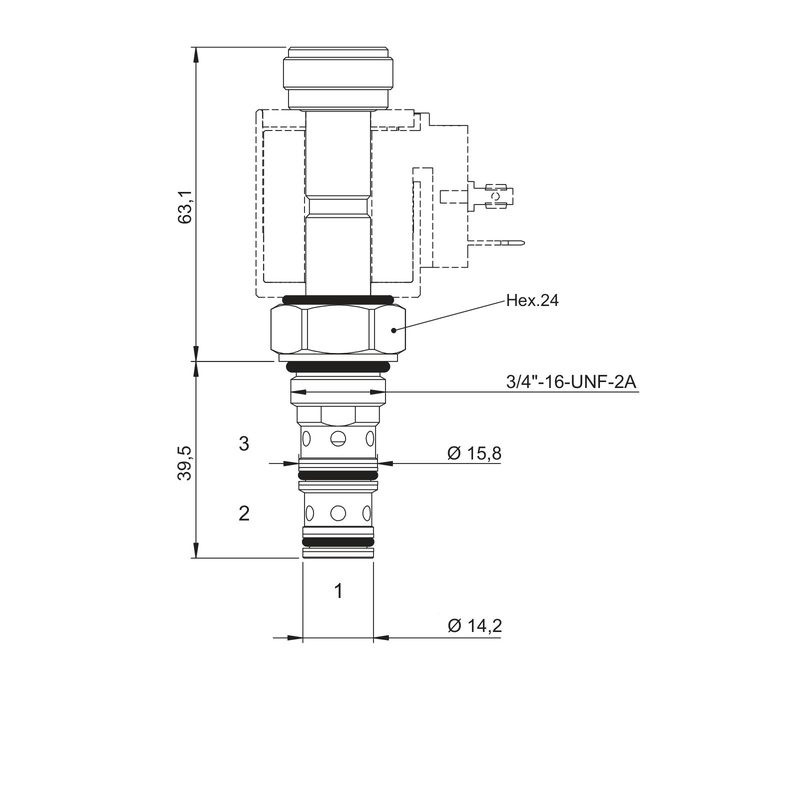

  • 0402100000, 0402200000, 0402300000 and 0402400000 (SAE 08, cavity 08-3, 3/4"-16 UNF): spool type, 250 bar, up to 15 l/min depending on scheme and inlet port (13.5 l/min on 0402200000)
  • 0403200000 (SAE 10, cavity 10-3, 7/8"-14 UNF): spool type, 20 l/min, 250 bar
  • 0404200000 (SAE 12, cavity 12-3, 1-1/16"-12 UNF): spool type, 50 l/min, 250 bar
  • 0423200000 (SAE 10, cavity 10-3): poppet type, 30 l/min, 350 bar, 0.25 cm³/min leakage

The four 0402 valves differ in their hydraulic scheme, that is which port connects to which. Check the scheme on the fitted valve.

Source: NEM General catalogue Vol. 1, Cartridge Valves technical catalogue, version DT001GB001 IR2, 10.2018.

1.1339.0402100000

Data sheet

Cavity
CAV 8-3
CAV 10-3
CAV 12-3

4 other products in the same category:

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (7)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
3/2 direct-acting 13.5 l/min 250 bar CAV 08-3 (diagram 2) [0402200000]
1.1339.0402200000
In stock
3/2 direct-acting 15 l/min 250 bar CAV 08-3 (diagram 1) [0402100000]
1.1339.0402100000
Last units
3/2 direct-acting 15 l/min 250 bar CAV 08-3 (diagram 3) [0402300000]
1.1339.0402300000
Last units
3/2 direct-acting 15 l/min 250 bar CAV 08-3 [0402400000]
1.1339.0402400000
Last units
3/2 direct-acting 20 l/min 250 bar CAV 10-3 [0403200000]
1.1339.0403200000
In stock
3/2 direct-acting 30 l/min 350 bar CAV 10-3 [0423200000]
1.1339.0423200000
In stock
3/2 direct-acting 50 l/min 250 bar CAV 12-3 [0404200000]
1.1339.0404200000
In stock
