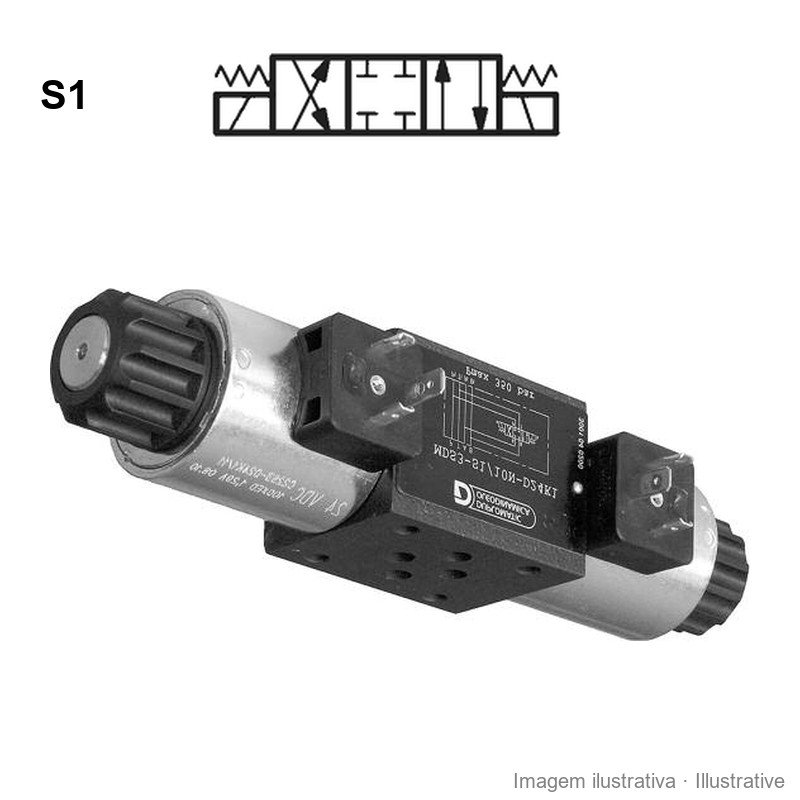

Duplomatic MDS3 modular solenoid valve (NG6)

Name: Duplomatic MDS3 modular solenoid valve (NG6)
Brand: Duplomatic
Availability: InStock

€386.49

Tax included Delivery in 1 to 5 working days.

(314.22 € No tax)

Duplomatic MDS3 modular (sandwich) solenoid valve, NG6 (CETOP 3), to switch lines or select pressures within a modular stack. Up to 350 bar and 50 l/min.

Operation: 2 solenoids, 3 positions (4/3)

Spool: S1

Current: DC

Voltage: 24 V

Extras: None

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.MDS3S1D24

€314.22 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: How to choose a hydraulic valve: types, mounting, coils and flow

The MDS3 is a switching solenoid valve in modular format: the P, T, A and B passages go straight through the body, so it stacks as a sandwich with other ISO 4401-03, NG6 (CETOP 3) modular valves. It is used to divert flows or select between pressure values without extra pipework.

Pressure: 350 bar on P, A and B; on T, 210 bar with DC coils and 140 bar with AC coils
Maximum flow: 50 l/min
S1: two solenoids, three positions
SA1 and RSA1: one solenoid, two positions
Coils with DIN 43650 plug

Available options: MDS3-S1 and MDS3-RSA1 at 24 V DC and MDS3-SA1 at 110 V AC. Check the spool and voltage before ordering.

Source: Duplomatic MDS3 technical catalogue, version 41 251/116 ED.
