Needle valve CAV8-2 (20 l/min): ST21A-A2/L20S-A

Name: Needle valve CAV8-2 (20 l/min): ST21A-A2/L20S-A
Brand: Argo Hytos
SKU: AH.29243001
Price: 46.01 EUR
Availability: InStock

€46.01

Price including VAT at the legal rate

(37.4 € Excluding VAT. VAT at the legal rate applies.)

Argo-Hytos 3/4-16 UNF cartridge needle valve, up to 20 l/min, adjusted with an Allen key.

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. AH.29243001

€37.40 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

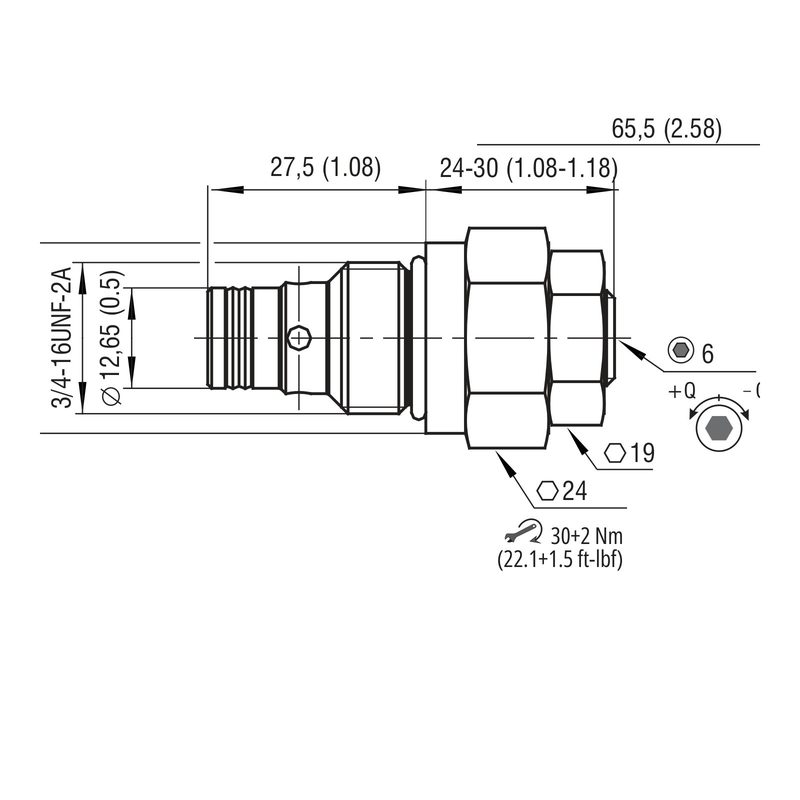

Cartridge needle valve that screws into a 3/4-16 UNF cavity (C-8-2) and regulates flow in both directions. This version has no by-pass check (that is the ST2C1A) and is adjusted with a 6 mm Allen key, without a cap. Adjustment is fine, linear and light, and can be locked with the lock nut.

Maximum flow: 20 l/min
Maximum pressure: 320 bar
NBR seals, from -30 to +100 °C
Zinc-plated, 240 h in salt spray (ISO 9227)
Cartridge tightening torque: 30 Nm; weight: 0.2 kg

Caution: after loosening the lock nut, the screw should only be turned as far as the red mark. Beyond it, the valve can come out completely and leak oil.

Source: Argo-Hytos ST2(C)1A-A2 datasheet, HA 5133, 11/2023.
