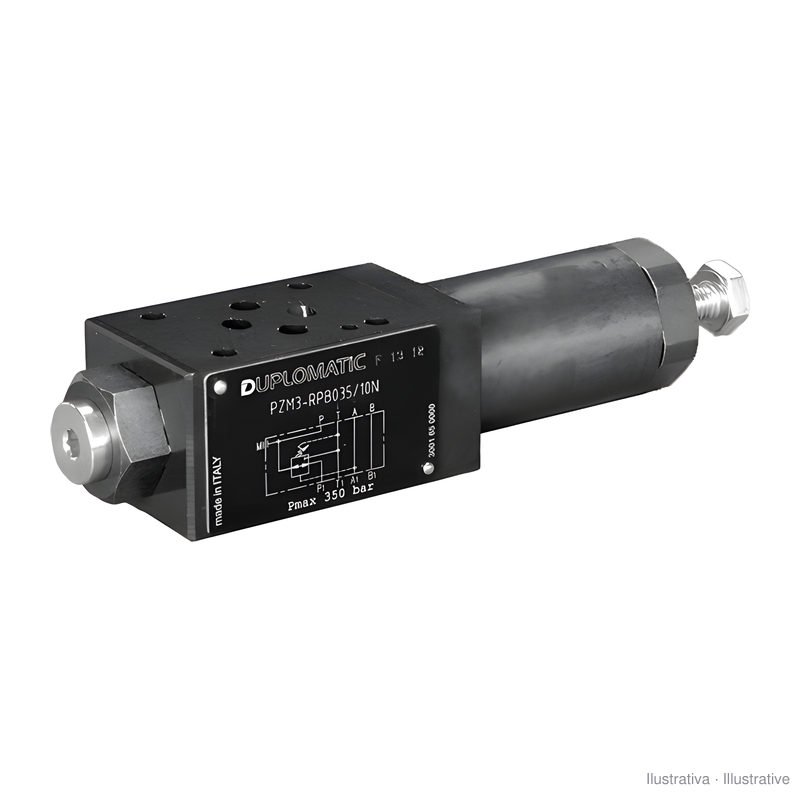

Duplomatic PZM3 modular pressure reducing valve, NG6

The PZM3 is a sandwich pressure reducing valve for NG6 (CETOP 3) stacks: it fits between the subplate and the directional solenoid valve and keeps one of the lines at a lower pressure than the rest of the circuit, for example to limit the force of a clamping cylinder.

In the options you choose the line it acts on and the setting range:

• On line P: 3-35, 10-70, 30-140 or 50-280 bar
• On line A or line B: 10-70, 30-140 or 50-280 bar
• 3-35 bar versions on P, A or B, listed as "adjustment on side A" (please check with us what differs in these versions)

To get the choice right, check the pressure the function needs and the line where you want to reduce it; the lowest range that covers that value gives finer adjustment.
