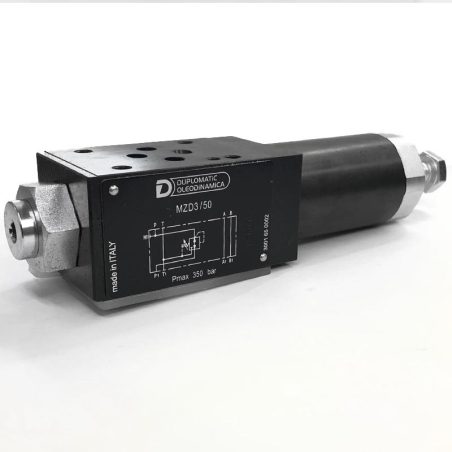

Duplomatic MZD modular pressure reducing valve, NG6 (CETOP 3)
search
  • Duplomatic MZD modular pressure reducing valve, NG6 (CETOP 3)

Duplomatic MZD modular pressure reducing valve, NG6 (CETOP 3)

* Price on request *
Price including VAT at the legal rate

Direct-acting 3-way modular pressure reducing valve, to fit under NG6 (CETOP 3) solenoid valves. Setting from 3 to 280 bar, depending on the version.

Duplomatic NG6 (CETOP 3): MZD2/50
Quantity
Product available with different options

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. D.MZD2/50

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €123 incl. VAT in mainland Portugal, €184.50 incl. VAT in Spain and €492 incl. VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The MZD is a direct-acting, 3-way spool-type pressure reducing valve in ISO 4401-03 modular form. It fits in the stack, under the NG6 (CETOP 3) solenoid valve, without pipework. Being 3-way, a pressure peak coming back from the actuator is relieved to T, which protects the reduced-pressure branch. The drain is internal, to line T.

  • Maximum operating pressure: 350 bar
  • Maximum flow: 50 l/min in the controlled lines, 75 l/min in the free lines
  • Setting ranges: MZD2 3 to 35 bar, MZD3 10 to 70 bar, MZD4 30 to 140 bar, MZD5 50 to 280 bar

The number gives the range and the letter gives the line: no letter reduces the pressure in P, A reduces it in A (B keeps full pressure) and B the other way round. All versions in the list are series 50, with a hexagon adjustment screw.

Source: Duplomatic MZD technical catalogue, version 62 200/110 ED.

D.MZD2/50

Data sheet

CETOP interface
NG6 (CETOP 3)

Specific References

Internal barcode
2200111677971
MPN
MZD2/50

4 other products in the same category:

Viewed products

Are you an OEM? Reseller? Workshop?

Get special conditions

All options for this item (12)

Prices include VAT at the legal rate

Description
Part number
Availability
Price
MZD2/50
D.MZD2/50
On request
MZD2A/50
D.MZD2A/50
Last units
MZD2B/50
D.MZD2B/50
On request
MZD3/50
D.MZD3/50
On request
MZD3A/50
D.MZD3A/50
On request
MZD3B/50
D.MZD3B/50
On request
MZD4/50
D.MZD4/50
On request
MZD4A/50
D.MZD4A/50
On request
MZD4B/50
D.MZD4B/50
On request
MZD5/50
D.MZD5/50
On request
MZD5A/50
D.MZD5A/50
On request
MZD5B/50
D.MZD5B/50
Last units
