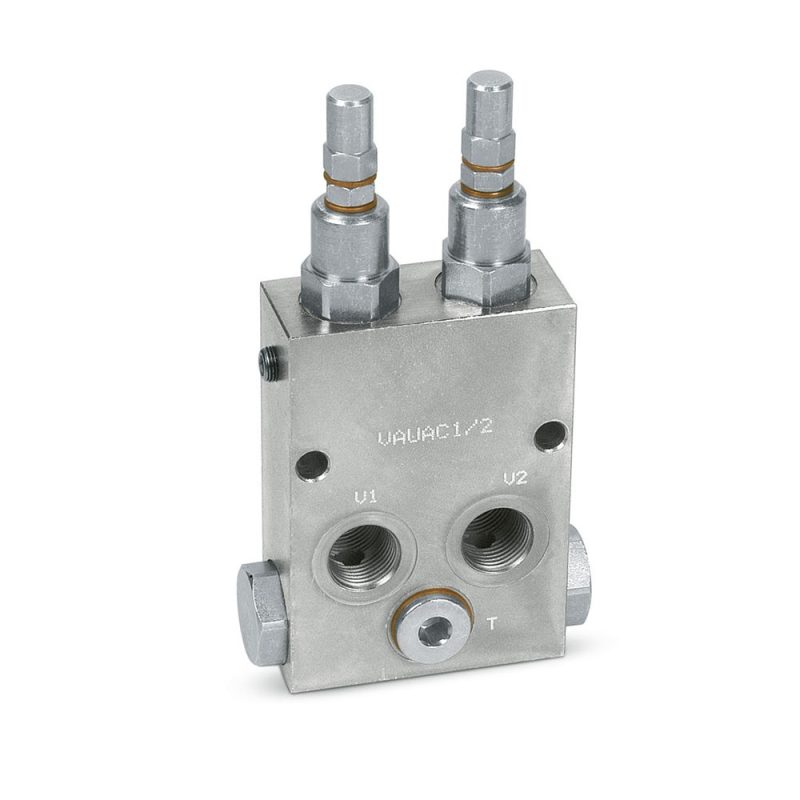

Marchesini VAUAC anti-shock valve with anti-cavitation

Name: Marchesini VAUAC anti-shock valve with anti-cavitation
Brand: Oleodinamica Marchesini
Availability: InStock

€215.92

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(175.55 € Excluding VAT. VAT at the legal rate applies.)

Marchesini VAUAC anti-shock valve with anti-cavitation, for hydraulic motors, 1/2", 3/4" and 1", up to 350 bar.

Relief valves: 1/2" - V0508/300

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.MA01.V0508300

€175.55 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

The VAUAC limits the pressure in the lines of a hydraulic motor and at the same time prevents cavitation: the check valves let oil into the low-pressure side when the load drives the motor after a shock. Marchesini recommends fitting it close to the motor to reduce pressure losses.

V0508 (G 1/2"): up to 70 l/min, springs for 10-180 (standard) and 80-300 bar
V0510 (G 3/4"): up to 110 l/min, springs for 20-200 and 50-400 bar (standard)
V0736 (G 1"): single-acting differential version, with one relief valve and one check valve, up to 160 l/min; springs for 20-200 and 50-400 bar (standard)
Maximum pressure: 350 bar

The number after the slash gives the spring (/200, /300 or /400). On request it can be supplied with a handwheel or ready for sealing.

Source: Oleodinamica Marchesini technical catalogue, section 5 Valvole antiurto, 2008; Oleodinamica Marchesini general catalogue 2018.
