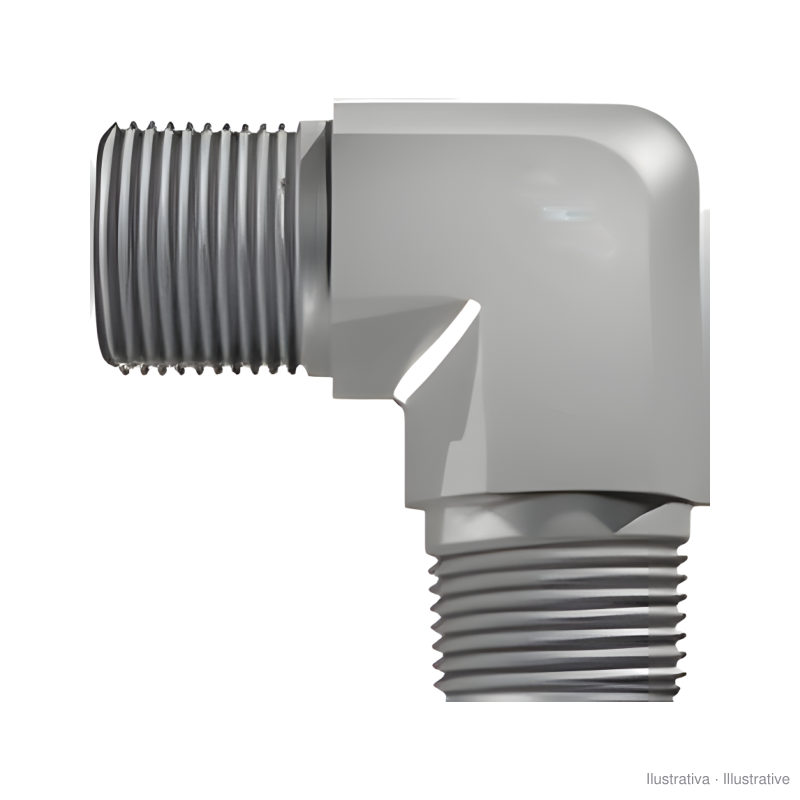

Male-male BSP-BSPT elbow

Name: Male-male BSP-BSPT elbow
Availability: InStock

€10.14

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(8.24 € Excluding VAT. VAT at the legal rate applies.)

90° male-male elbow with one BSP and one BSPT thread, from 1/8" to 1.1/4".

BSP: 1"

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0958.11

€8.24 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

90° elbow with a male thread on both ends, of the same size: one parallel BSP and one tapered BSPT. The BSPT end seals on the thread itself, with PTFE tape or sealant; the BSP end seals with a washer, O-ring or cone, depending on the part it connects to.

Sizes: 1/8", 1/4", 3/8", 1/2", 3/4", 1" and 1.1/4"
BSP is the 55° parallel pipe thread (ISO 228-1); a 1/2" BSP male thread measures about 20.9 mm across the outside

Check which port is tapered and which is parallel before ordering.

Reference 1.0958.11
