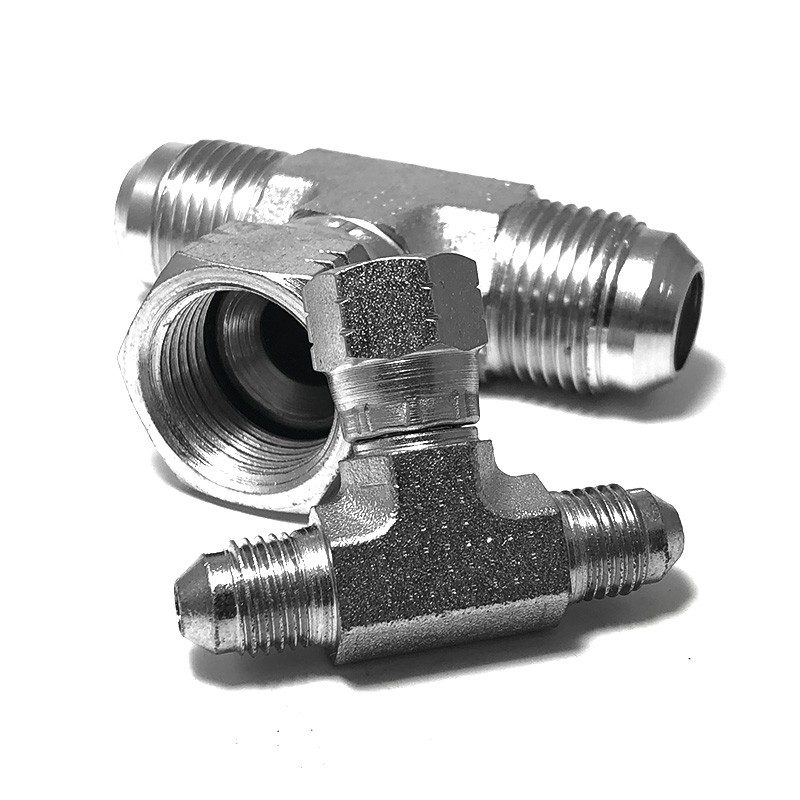

EVT male-female-male JIC tee (S685)

Name: EVT male-female-male JIC tee (S685)
Availability: InStock

€14.64

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(11.9 € Excluding VAT. VAT at the legal rate applies.)

Tee with two male JIC 37° ends and a female JIC nut, to branch off a line from a male JIC end already fitted. S685 series, from 7/16" to 1.5/8".

JIC accessory: 1.1/16"

Quantity

In stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0607.1116

€11.90 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

Tee, S685 series, EVT form, with two male JIC ends and a female JIC nut, all the same size. The female nut fits straight onto an existing male JIC end (on an adapter, a valve or a manifold); because it turns before tightening, the body of the tee can be pointed where the hoses need to go.

There is also the EVL form (S680 series). If the position of the female nut on the tee matters for your installation, please check with us before ordering.

Sizes available: 7/16", 1/2", 9/16", 3/4", 7/8", 1.1/16", 1.5/16" and 1.5/8".

To identify the JIC size, measure the outside diameter of the male thread: about 11.1 mm for 7/16", 14.3 mm for 9/16", 19 mm for 3/4" and 22.2 mm for 7/8".

Reference 1.0607.1116
