Female-male JIC-UNF union (S170)

Name: Female-male JIC-UNF union (S170)
Availability: InStock

€12.21

Price including VAT at the legal rate Delivery in 1 to 5 working days.

(9.93 € Excluding VAT. VAT at the legal rate applies.)

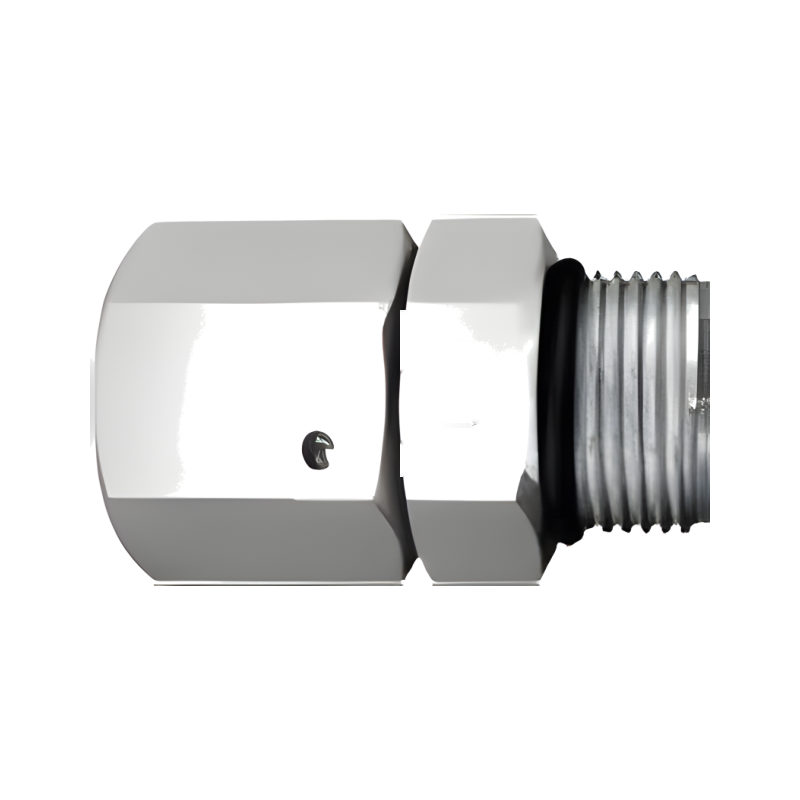

Straight union with a female JIC 37° nut and a male UNF end of the same size, to connect a male JIC end to a UNF port. S170 series, from 7/16" to 1.5/16".

JIC accessory: 1.1/16" - 1.1/16"

Quantity

Last items in stock

Are you an OEM? Reseller? Workshop?

Get special conditions

Ref. 1.0613.11161116

€9.93 excl. VAT

Request a commercial proposal

Delivery in 1 to 5 working days in mainland Portugal (items in stock); Spain 3 working days, rest of the EU 5 working days. Times are estimates.

Shipping from €6.15 in Portugal, €7.38 in Spain and €24.60 in the rest of the EU; free from €100 + VAT in mainland Portugal, €150 + VAT in Spain and €400 + VAT in the rest of the EU. You can also collect from our shop in Leiria.

Returns within 14 days, by post.

Payment by Multibanco, MB WAY, card, Apple Pay, Google Pay or bank transfer.

Shipping costs

Technical guide: BSP and NPT threads: how to identify, measure and tell apart BSPP, BSPT and NPT

Straight union, S170 series: the male UNF end fits a UNF port on the pump, manifold or valve, and the female JIC nut tightens onto a male JIC end, which seals on the 37° cone.

Both threads are the same size in each option: 7/16", 9/16", 3/4", 7/8", 1.1/16" and 1.5/16".

Before ordering, check the size of the UNF port and how it seals. To identify the size, measure the outside diameter of the thread: about 11.1 mm for 7/16", 14.3 mm for 9/16", 19 mm for 3/4" and 27 mm for 1.1/16".

Reference 1.0613.11161116
